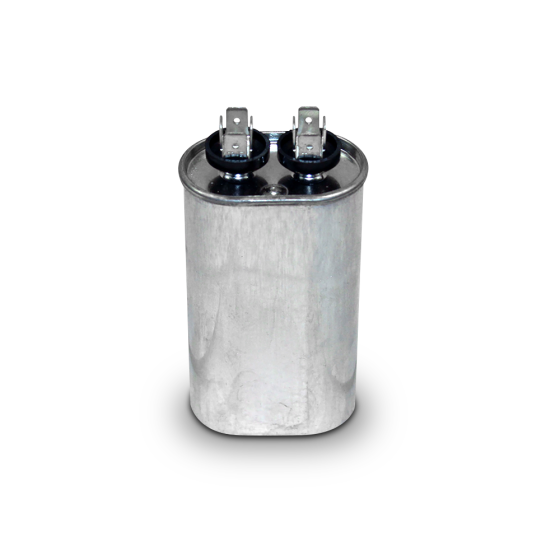

Totaline® Oval Run Capacitor 15µF, 440v

Item
P2911504
  • California Prop 65

PRODUCT DETAILS

This capacitor series is designed specifically for the motor run applications where the capacitors are used in conjunction with permanent split capacitor type motors. They may be used on either 50 or 60-Hertz systems but should not be used at higher frequencies or in applications where higher frequency harmonics are present. For those types of applications the General Purpose AC Capacitors should be used.

FEATURES & BENEFITS

• Reliability tested to meet 60,000 service hours, per United Technologies application parameters.
• High grade metallized Polypropylene Film (5 to 12 microns thick) .
• RoHS Compliant .
• UL Approved with Pressure Sensitive interrupter of 1000 AFC.
• Performance tested per United Technologies reliability requirements for capacitance ratings, power factor, dissipation factor and high voltage testing .
• Capacitance: 15µF.
• Tolerance: +/- 6%.
• Voltage: 440.
• Op Temp: -29° to +68°C.

Electrical
Voltage 440
Safety Standards
California Prop 65 Yes
Specification
Microfarad Rating 15µF
Cap Type Run Capacitors
Weights and Dimensions
Operating Weight (lbs) 0.3
Exterior Dimensions (D) (inches) 1.800000
Exterior Dimensions (W) (inches) 2.000000
Exterior Dimensions (H) (inches) 4.000000
Shipping Weight (lbs) 1.000000
