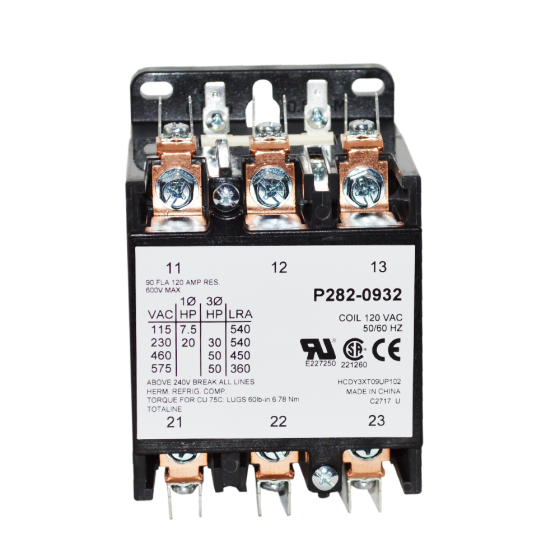

Totaline® Contactor 3 Pole, 120Vac Coil, 90FLA, 120RA, Screw Terminals
Item
P282-0932
FEATURES & BENEFITS
• 3 Pole.• FLA: 90.
• Resistive Amps: 120.
• Coil Voltage: 120Vac.
• 540LRA @ 240Vac, 450LRA @ 480Vac, 360LRA @ 600Vac.
• Terminal Type: Screw.
• 2 Quick Connections Per Pole.
| Electrical | |
|---|---|
| FLA | 90 | Hertz | 60 | Voltage | 120/240/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 120Vac | Poles | 3 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 3.45 | Exterior Dimensions (D) (inches) | 3.600000 | Exterior Dimensions (W) (inches) | 5.100000 | Exterior Dimensions (H) (inches) | 4.200000 | Shipping Weight (lbs) | 7.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
