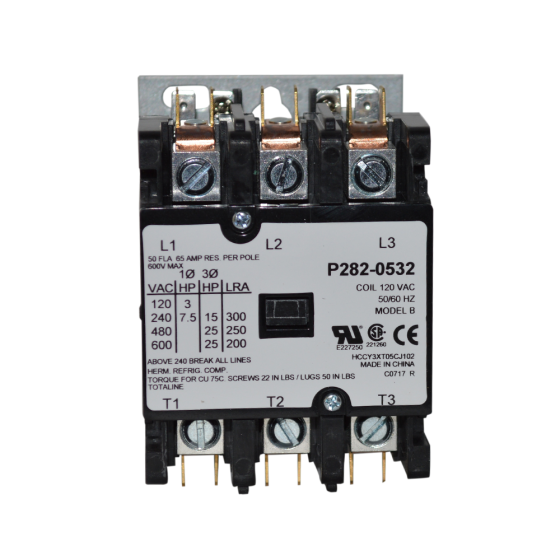

Totaline® Contactor 3 Pole, 120Vac Coil, 50FLA, 65RA, Lug Terminals
Item
P282-0532
FEATURES & BENEFITS
• 3 Pole.• FLA: 50.
• Resistive Amps: 65.
• Coil Voltage: 120Vac.
• 300LRA @ 240Vac, 250LRA @ 480Vac, 200LRA @ 600Vac.
• Terminal Type: Lugs.
• 2 Quick Connections Per Pole.
| Electrical | |
|---|---|
| FLA | 50 | Hertz | 60 | Voltage | 120/240/480/600 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Coil Voltage | 120Vac | Poles | 3 |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.15 | Exterior Dimensions (D) (inches) | 2.900000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 3.300000 | Shipping Weight (lbs) | 3.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
