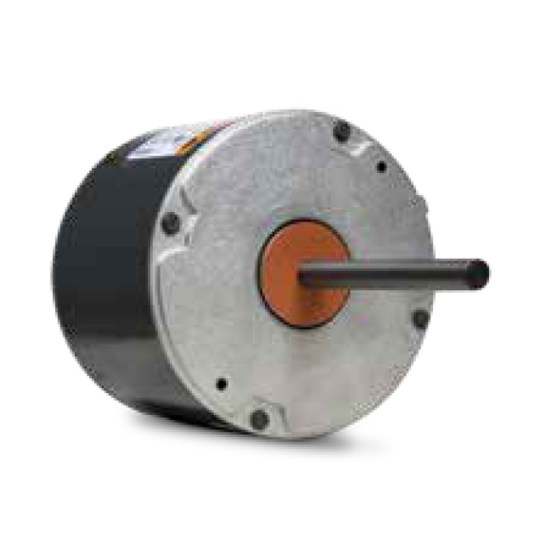

Totaline® Condenser Fan Motor 1/3HP, 1075RPM, 208/230Vac, 2.0A, 7.5µF/370Vac, 1 Speed, 60 °C, (PSC)

Item
P2578729
  • California Prop 65

PRODUCT DETAILS

Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications.


FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 2.0
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 6.0

Specification
Bearing Type Ball
Motor Frame 48
Motor HP 1/3
Motor Type PSC
Number of Speeds 1
RPM 1075
Shaft Diameter 0.50
Electrical
Amps 2
FLA 2
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 13.35
Exterior Dimensions (D) (inches) 6.100000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 11.700000
Shipping Weight (lbs) 17.000000
