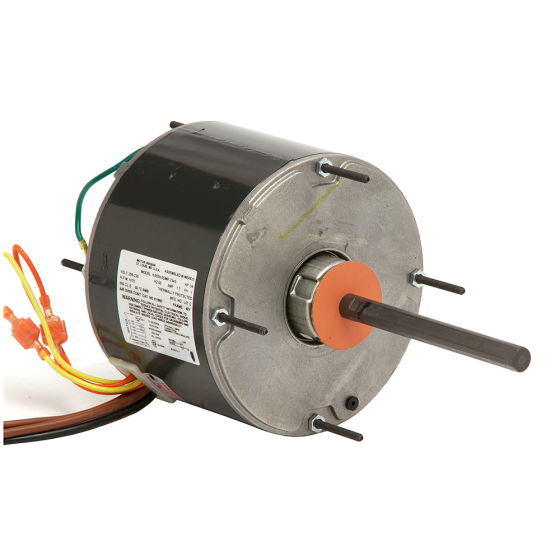

Totaline® Multi-HP Direct Drive Blower Motor 1/6,1/3HP, 825RPM, 208/230Vac, 2.55A, 7.5µF/370Vac, 2 Speed, 60 °C, (PSC)

Item
P257-E5464
  • California Prop 65

PRODUCT DETAILS

Totaline Condenser Fan Motors are designed as a universal PSC replacement for vertical shaft- up or shaft-down applications. Shell and end shields are closed for protection against weather. All Totaline Condenser Fan Motors feature reversible rotation and thru bolt or band mounting for air conditioning or heat pump applications. Totaline Multi Horse-Power Condenser Fan Motors are ideal for truck stock.


FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/6,1/3
• RPM: 825
• Number of Speeds: 2
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 2.55
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 60 °C
• Shaft Size: 0.50 x 5.0

Specification
Bearing Type Ball
Motor Frame 48
Motor HP 1/6 - 1/3
Motor Type PSC
Number of Speeds 2
RPM 825
Shaft Diameter 0.50
Electrical
Amps 2.55
FLA 1.9
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 16.1
Exterior Dimensions (D) (inches) 5.800000
Exterior Dimensions (W) (inches) 5.700000
Exterior Dimensions (H) (inches) 10.600000
Shipping Weight (lbs) 20.000000
Warranty
Country of Origin Mexico
