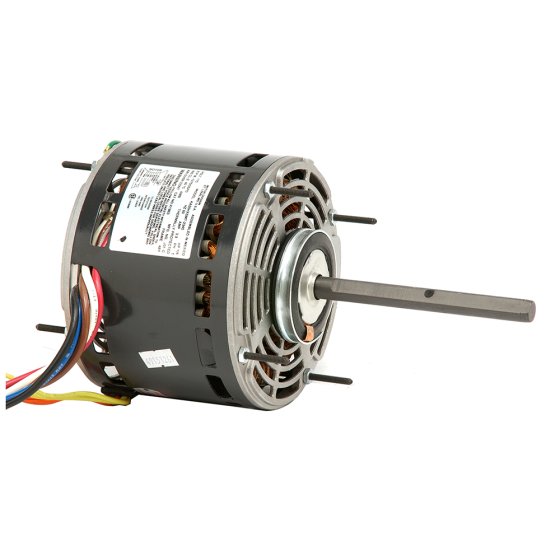

Totaline® Multi-HP Direct-Drive Blower Motor 1/6-1/2HP, 1075RPM, 208/230Vac, 3.6A, 10µF/370Vac, 4 Speed, 40 °C, (PSC)
Item
P257-E5461
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Ambient Temperature | 40 °C | Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/6 - 1/2 | Motor Type | PSC | Number of Speeds | 4 | RPM | 1075 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 3.6 | FLA | 3.6 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 13.15 | Exterior Dimensions (D) (inches) | 5.500000 | Exterior Dimensions (W) (inches) | 6.000000 | Exterior Dimensions (H) (inches) | 7.900000 | Shipping Weight (lbs) | 17.000000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico | Parts Warranty | 1 Year |
