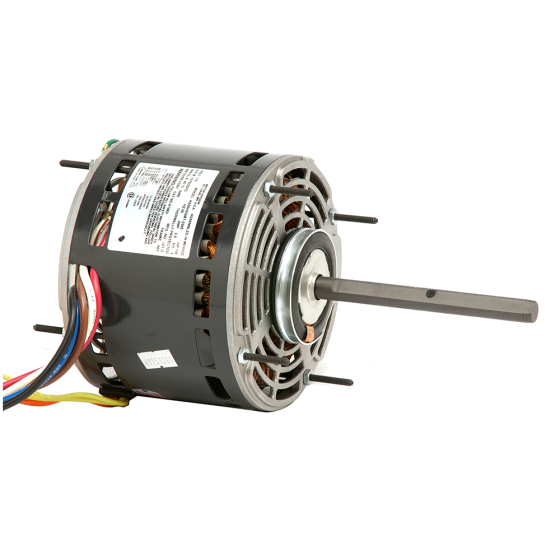

Totaline® Direct-Drive Blower Motor 1/2HP, 1075RPM, 208/230Vac, 2.7A, 10µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
P2578588
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Ambient Temperature | 40 °C | Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/2 | Motor Type | PSC | Number of Speeds | 3 | RPM | 1075 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 2.7 | FLA | 2.7 | Hertz | 60 | Voltage | 208/230 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 14.9 | Exterior Dimensions (D) (inches) | 5.700000 | Exterior Dimensions (W) (inches) | 6.700000 | Exterior Dimensions (H) (inches) | 11.000000 | Shipping Weight (lbs) | 18.000000 |
| Warranty | |
|---|---|
| Parts Warranty | 1 Year |
