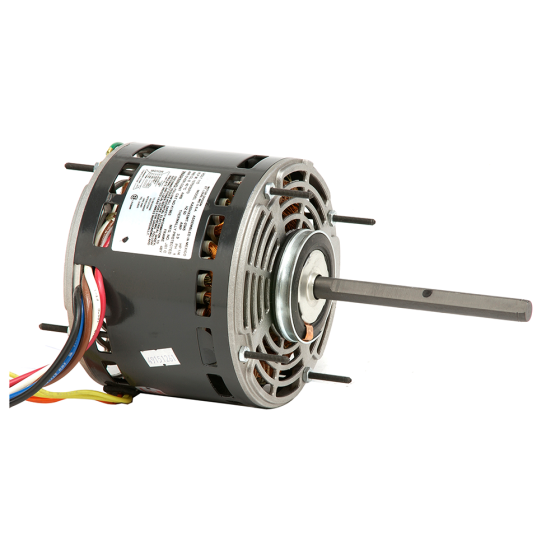

Totaline® Direct-Drive Blower Motor 1/3HP, 1075RPM, 115Vac, 5.0A, 10µF/370Vac, 3 Speed, 40 °C, (PSC)
Item
P2578585
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
| Specification | |
|---|---|
| Ambient Temperature | 40 °C | Bearing Type | Sleeve | Motor Frame | 48 | Motor HP | 1/3 | Motor Type | PSC | Number of Speeds | 3 | RPM | 1075 | Shaft Diameter | 0.50 |
| Electrical | |
|---|---|
| Amps | 5 | FLA | 5 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 11.85 | Exterior Dimensions (D) (inches) | 6.100000 | Exterior Dimensions (W) (inches) | 5.600000 | Exterior Dimensions (H) (inches) | 10.000000 | Shipping Weight (lbs) | 15.000000 |
| Warranty | |
|---|---|
| Parts Warranty | 1 Year |
