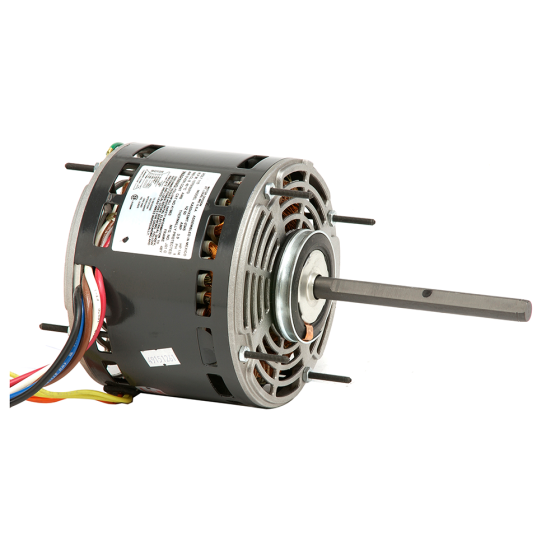

Totaline® Direct Drive Blower Motor 1/4HP, 1075RPM, 208/230Vac, 1.6A, 10µF/370Vac, 3 Speed, 40 °C, (PSC)

Item
P2578584
  • California Prop 65

PRODUCT DETAILS

Totaline Direct Drive Blower Motors are three speed standard efficiency, reversible rotation with extended thru bolts and resilient rings for base mounting. These models have open air enclosures and feature shell mounting holes for universal replacement of non-ventilated motors for exhaust, air circulators, unit heaters, unit coolers, and other air-over applications.


FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/4
• RPM: 1075
• Number of Speeds: 3
• Rotation: Reversible
• Voltage: 208/230Vac
• Amperage: 1.6
• Capacitor: 10µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Sleeve
• NEMA Frame Size: 48
• Open, Air Over (OAO) Enclosure
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
• Shaft Size: 0.50 x 4.0

Specification
Ambient Temperature 40 °C
Bearing Type Sleeve
Motor Frame 48
Motor HP 1/4
Motor Type PSC
Number of Speeds 3
RPM 1075
Shaft Diameter 0.50
Electrical
Amps 1.6
FLA 1.6
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 9.8
Exterior Dimensions (D) (inches) 6.300000
Exterior Dimensions (W) (inches) 6.000000
Exterior Dimensions (H) (inches) 10.000000
Shipping Weight (lbs) 13.000000
Warranty
Parts Warranty 1 Year
