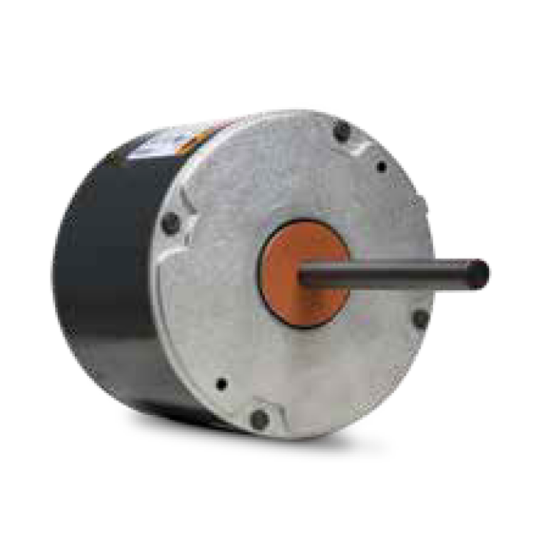

Totaline® Condenser Fan Motor 1/3HP, 1075RPM, 460Vac, 1.0A, 7.5µF/370Vac, 1 Speed, 70 °C, (PSC)

PRODUCT DETAILS

Totaline High Temperature Condenser Fan Motors feature 70°C (158°F) Ambient Design. All angle mounting position for universal versatility.

FEATURES & BENEFITS

• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/3
• RPM: 1075
• Number of Speeds: 1
• Rotation: Reversible
• Voltage: 460Vac
• Amperage: 1.0
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 48
• Totally Enclosed, Air Over (TEAO) Enclosure
• Continuous Duty
• Insulation Class: F
• Ambient Temperature: 70 °C
• Shaft Size: 0.50 x 6.0
