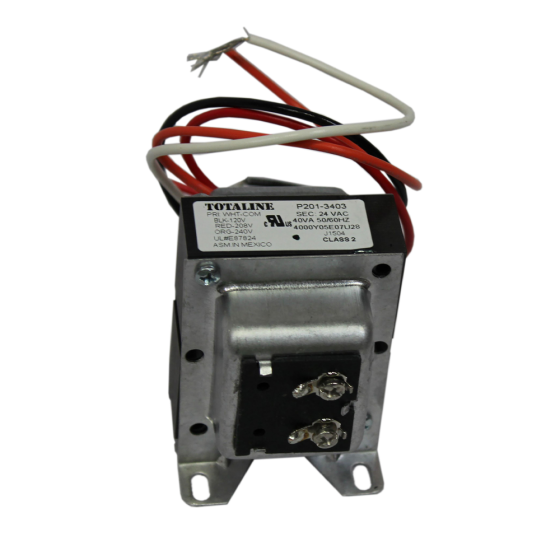

Totaline® Transformer 120/208/240Vac Primary, 24Vac Secondary, 40Va
Item
P201-3403
FEATURES & BENEFITS
• Mounting: Foot.• Primary: 120/208/240Vac.
• Secondary: 24Vac.
• Va Rating: 40.
• Hz: 50/60.
• Lead Length: 9".
| Electrical | |
|---|---|
| Hertz | 60 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Specification | |
|---|---|
| Va Rating | 40Va | Secondary Voltage | 24Vac | Primary Voltage | 120/208/240Vac |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 1.3669 | Exterior Dimensions (D) (inches) | 3.200000 | Exterior Dimensions (W) (inches) | 2.300000 | Exterior Dimensions (H) (inches) | 2.900000 | Shipping Weight (lbs) | 3.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
