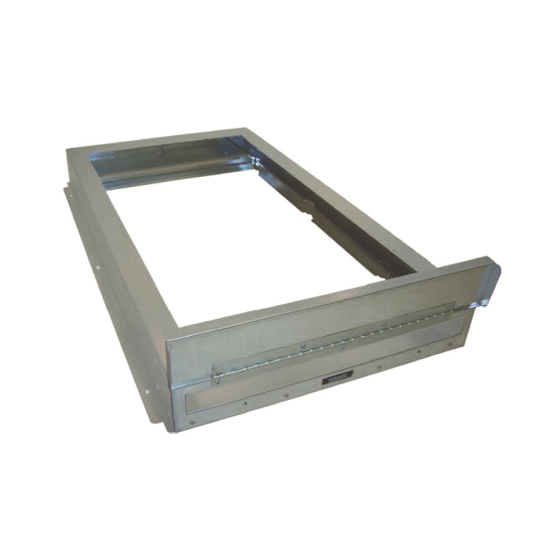

Air Handler Filter Base 14" x 20" (for 1" or 2" filters)
The Totaline® Air-Tite Series Filter Housings offer the most well-built, sleek designed and easiest to use galvanized sheet metal filter housings on the market, for residential and light commercial use. It allows for easy access to furnace filters—no panels or door to remove. The housing is made to fit all electric air handlers through 5 tons and makes a clean and professional installation. Uses standard size pleated or panel filters. Standard Features: • Fully hinged door with magnetic latch and integrated handle provide a tight seal, eliminating air and debris from entering the filter box from surrounding area. • Removable rails are easy to change to accommodate different filter sizes. • Heavy 22 gauge galvanized sheet metal has been die cut for smooth edges. • Solid one piece wrap cabinet design is spot welded and riveted for sturdiness and long life. • Tabs have rounded corners, which lessens chances of damage in transit or installation injury. • Mounting holes are provided for faster installation. • Individually boxed for convenient shipping and warehousing. • Limited Lifetime Warranty.
|California Prop 65||Yes|
|Weights and Dimensions|
|Operating Weight (lbs)||5||Exterior Dimensions (D) (inches)||22.0000||Exterior Dimensions (W) (inches)||14.2500||Exterior Dimensions (H) (inches)||4.0000||Shipping Weight (lbs)||15.0000|
|Thickness||1||Carbon Filter||Yes||LCD||Yes||MERV Filter||Yes||Number of Bulbs||1|
