APPLICATIONS

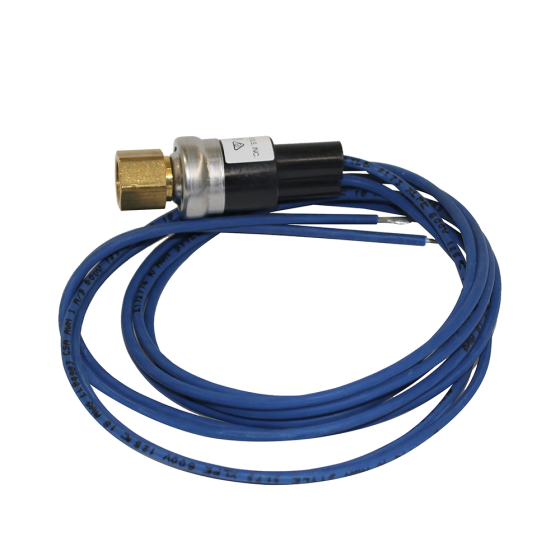

P100 Series switches are encapsulated, nonadjustable, SPST, direct mount switches for use with noncorrosive refrigerants. The switches are available with automatic reset in both open low and open high configurations and manual reset with open high action.
FEATURES & BENEFITS
• Open on Pressure Drop
• Low Cutout
• Opens at 35 psig
• Closes at 60 psig
• Compact size and light weight allow for direct mounting.
• Trip-free manual reset (manual reset models)...contacts cannot be overridden by continued depression of the reset button.
• Use with all non-corrosive refrigerants.
• Encapsulated switch, dust tight .
• 1/4 in. female flare fitting with built-in Schrader type depressor is standard.
• Electrical connections are made to 48 in.
CROSS REFERENCE
• Ranco - MPF-7004
• Robertshaw - 3100-004
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.5 | Exterior Dimensions (D) (inches) | 4.000000 | Exterior Dimensions (W) (inches) | 3.500000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.500000 |
| Warranty | |
|---|---|
| Country of Origin | Mexico |
