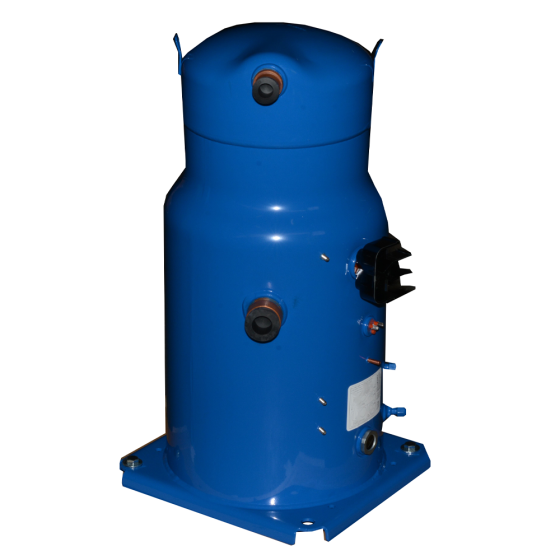

Hermetic Scroll Compressor R410A, 251,117BTU, 208/230Vac, Three Phase
Item
P045-25121K
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 251,179
• Refrigerant: R410A
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 75 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R-410A | Compressor Type | Scroll | BTU Rating | 201 to 300kBTU | Suction Line Height | 13" | Discharge Line Height | 25.5" | Discharge Line Size | 1-1/8" | BTU Output | 252000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 312 | Exterior Dimensions (D) (inches) | 25.500000 | Exterior Dimensions (W) (inches) | 27.000000 | Exterior Dimensions (H) (inches) | 47.000000 | Shipping Weight (lbs) | 342.000000 |
| Warranty | |
|---|---|
| Country of Origin | China |
