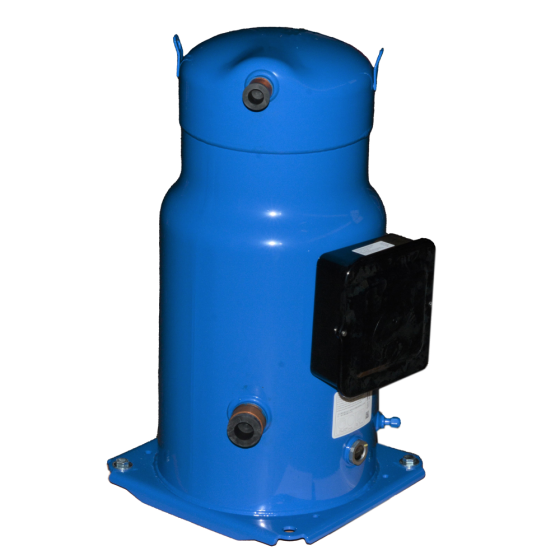

Hermetic Scroll Compressor R22, 185,554BTU, 208/230Vac, Three Phase
Item
P04018551
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 185,540
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 53.6 | Voltage | 208/230 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 161 to 200kBTU | Suction Line Height | 7.1" | Discharge Line Height | 25.3" | Discharge Line Size | 1-1/8" | BTU Output | 185000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 258 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 24.000000 | Exterior Dimensions (H) (inches) | 26.700000 | Shipping Weight (lbs) | 188.000000 |
