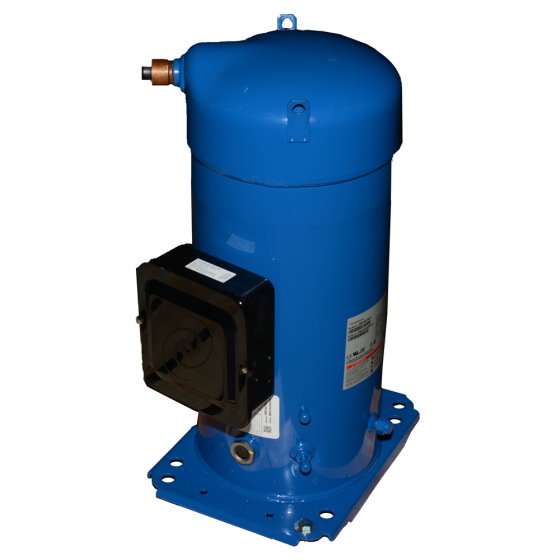

Hermetic Scroll Compressor R22, 163,330BTU, 460Vac, Three Phase
Item
P04016371
FEATURES & BENEFITS
• Compressor Type: Scroll• BTU Rating: 163,300
• Refrigerant: R22
• Voltage: 460Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 20.7 | Voltage | 460 |
| Specification | |
|---|---|
| Refrigerant | R22 | Compressor Type | Scroll | BTU Rating | 161 to 200kBTU | Suction Line Height | 7" | Discharge Line Height | 23.5" | Discharge Line Size | 1-1/8" | BTU Output | 163000 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 230 | Exterior Dimensions (D) (inches) | 24.000000 | Exterior Dimensions (W) (inches) | 24.000000 | Exterior Dimensions (H) (inches) | 31.500000 | Shipping Weight (lbs) | 260.000000 |
