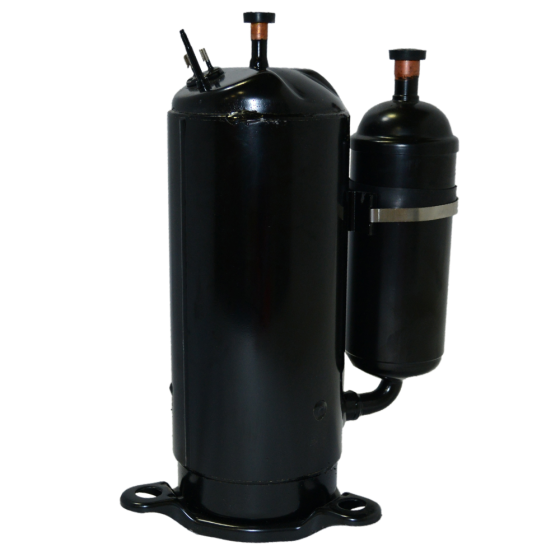

Totaline® Hermetic Rotary Compressor R410A, 20,145BTU, 208/230Vac, Single Phase
Item
P0352021
FEATURES & BENEFITS
• Compressor Type: Rotary• BTU Rating: 20,145
• Refrigerant: R410A
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 50/370µF
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 16 to 20kBTU | Suction Line Height | 13.4" | Discharge Line Height | 13.5" | Discharge Line Size | 3/8" | BTU Output | 20000 | Compressor Type | Rotary | Refrigerant | R-410A |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 42 | Exterior Dimensions (D) (inches) | 12.250000 | Exterior Dimensions (W) (inches) | 11.500000 | Exterior Dimensions (H) (inches) | 19.500000 | Shipping Weight (lbs) | 62.000000 |
