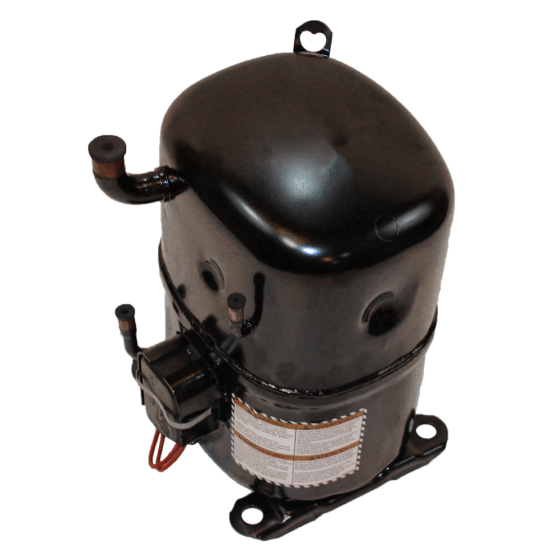

Totaline® Hermetic Reciprocating Compressor R22, 46,000BTU, 208/230Vac, Three Phase
Item
P0314652
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 46,000
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 13.3 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 46 to 50kBTU | Suction Line Height | 13.8" | Discharge Line Height | 5.1" | Discharge Line Size | 1/2" | BTU Output | 46000 | Compressor Type | Reciprocating | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 77.25 | Exterior Dimensions (D) (inches) | 9.800000 | Exterior Dimensions (W) (inches) | 10.300000 | Exterior Dimensions (H) (inches) | 14.100000 | Shipping Weight (lbs) | 108.000000 |
