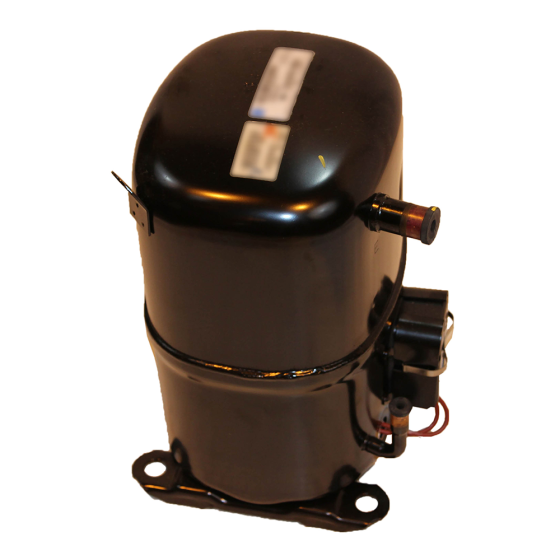

Totaline® Hermetic Reciprocating Compressor R22, 41,500BTU, 208/230Vac, Three Phase
Item
P0314151
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 41,500
• Refrigerant: R22
• Voltage: 208/230Vac
• Three Phase
• Capacitor Rating: Not Required (Compressor is Three Phase)
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 3 | RLA | 11.3 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 41 to 45kBTU | Suction Line Height | 12.4" | Discharge Line Height | 5.1" | Discharge Line Size | 1/2" | BTU Output | 42000 | Compressor Type | Reciprocating | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 75.85 | Exterior Dimensions (D) (inches) | 9.800000 | Exterior Dimensions (W) (inches) | 9.900000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 106.000000 |
