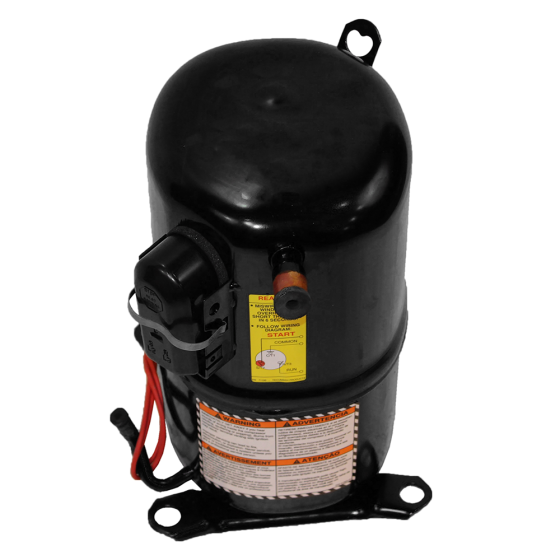

Totaline® Hermetic Reciprocating Compressor R22, 24,400BTU, 208/230Vac, Single Phase
Item
P0312429
FEATURES & BENEFITS
• Compressor Type: Reciprocating• BTU Rating: 24,400
• Refrigerant: R22
• Voltage: 208/230Vac
• Single Phase
• Capacitor Rating: 35/370µF
| Electrical | |
|---|---|
| Hertz | 60 | Phase | 1 | RLA | 10 | Voltage | 208/230 |
| Specification | |
|---|---|
| BTU Rating | 21 to 25kBTU | Suction Line Height | 11.6" | Discharge Line Height | 3.9" | Discharge Line Size | 3/8" | BTU Output | 24000 | Compressor Type | Reciprocating | Refrigerant | R22 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 63.55 | Exterior Dimensions (D) (inches) | 9.900000 | Exterior Dimensions (W) (inches) | 8.900000 | Exterior Dimensions (H) (inches) | 12.900000 | Shipping Weight (lbs) | 93.000000 |
