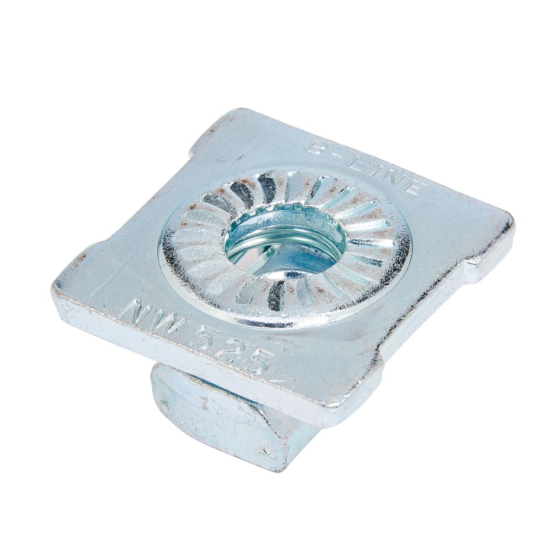

Combo Nut Washer, 3/8 in., 16 TPI
Item
NW528ZN
FEATURES & BENEFITS
• Bolt/thread/rod size: 3/8”-16
• Load rating (pull out strength): 1100 lbs
• Load rating (slip strength): 800 lbs
• Finish: Electro-plated
• Material: Steel
| Specification | |
|---|---|
| Threads Per Inch | 16 | Thread Size | 3/8 in. |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.138 | Exterior Dimensions (D) (inches) | 1.575000 | Exterior Dimensions (W) (inches) | 1.689000 | Exterior Dimensions (H) (inches) | 1.575000 | Shipping Weight (lbs) | 3.000000 |
