Nitrogen Purging Kit, 870 PSI

FEATURES

Test and purge refrigeration and air conditioning systems easily with our Nitrogen Purging Kit. Pressure check HVAC and Refrigeration lines, and purge pipes prior to brazing to protect the joints from oxidation. This kit can also be used to flush condensate drain lines. The compact size is suitable for use in hard to reach areas or where space is limited.

Available in 3 pressure variants, these nitrogen purging kits include UL Approved regulators, with easy-to-read contents and flow gauges that have been precision engineered for trade use.

• Nitrogen purging solution based around disposable cylinders

• Lightweight & ultra-portable

• For flushing, purging and testing pipes up to 1 1/8 inch

• Suitable for drain cleaning

• All in one contractor case

• Durable regulator range with contents & flow gauges

• Compatible with the Ambro Controls 1.9L Nitrogen Cylinder. Can also be connected to standard refillable cylinders with a CGA580 connection (using adapter included)

SPECIFICATIONS

• Delivery Range: 0-870 PSI

• Max. Inlet Pressure: 3000 PSI

• Hose Connection: ¼” SAE Fittings

• Hose length: 9.84ft (3m)

• Compatible Pipe Diameter: 3/8” to 1 1/8”

• Nitrogen cylinder sold separately.

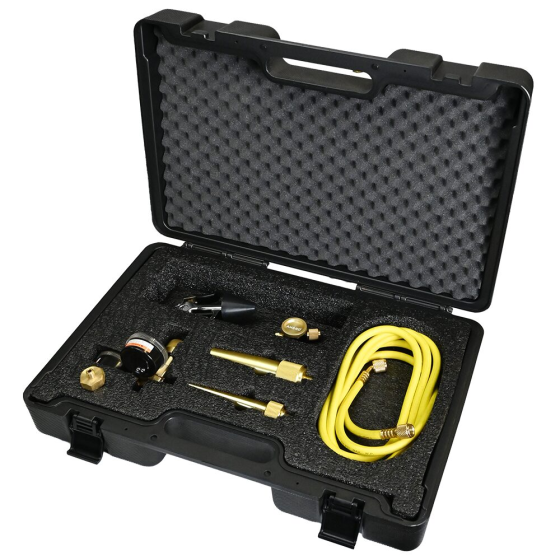

KIT INCLUDES

• 870 PSI Regulator (UL approved)

• 9.84ft (3m) hose with 1/4” SAE fittings

• 2 x Brass tips – allows purging & testing of 3/8” to 1 1/8” piping

• M10x1 to CGA580 extended refillable adaptor

• Contractor-grade carry case with foam insert

• Nitrogen Blowout Gun

• Nitrogen Flow Regulator

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	10
Exterior Dimensions (D) (inches)	6.000000
Exterior Dimensions (W) (inches)	22.000000
Exterior Dimensions (H) (inches)	15.000000
Shipping Weight (lbs)	10.000000

Resources

1811555_Flyer.pdf

1811555_Manual.pdf
