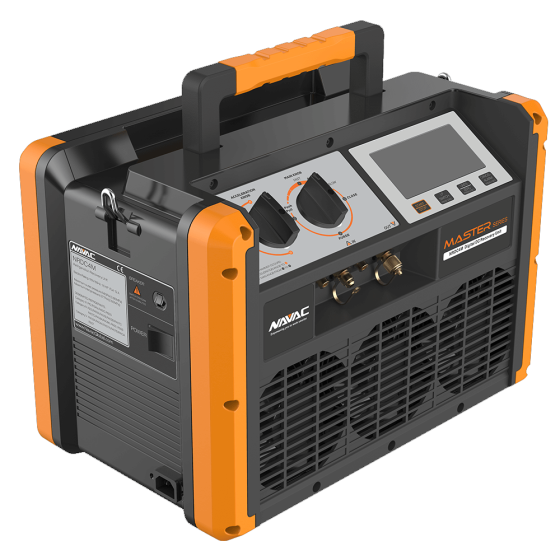

Navac Brushless Refrigerant Recovery Machine (A2L Compatible)

FEATURES

Tagged as the fastest and the most powerful machine in the current market, The NRDC4M recovery unit features a 4-cylinder structure that makes it up to 40% faster than the 2-cylinder unit. An oversized micro-channel coil with 3 high-speed cooling fans makes it the ideal recovery unit! The NRDC4M recovery unit is suitable for larger commercial systems and can be used for all commonly used refrigerants.

• Dual oil-free compressors

• High-Speed cooling fans

• Digital backlit display

• Purge function

• Brushless DC Technology

SPECIFICATIONS

Refrigerant Type

• Category lll: R-12, R-134a, R-401C, R-500

• Category lV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509

• Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507

• Power Supply V/Hz: 115V/60Hz

• FLA: 12

• Motor HP: 1.5

• Max Current Draw: 12 Amps

• Compressor: Oil-less, Air-cooled, Piston style

• Automatic Safety Shut-Off: 558 psi/38.5 bar

UL Verified Recovery Rate - lbs/min (kg/min)

• R-410A

○ Direct Vapor: 1.06 (4.08)

○ Direct Liquid: 16.82 (7.63)

○ Push/pull Liquid: 18.23 (8.27)

• R-22

○ Direct Vapor: 0.99 (0.45)

○ Direct Liquid: 12.76 (5.79)

○ Push/pull Liquid: 16.76 (7.60)

• R-134a

○ Direct Vapor: 0.84 (0.38)

○ Direct Liquid: 9.19 (4.17)

○ Push/pull Liquid: 15.08 (6.84)

• Inlet/Outlet Port (in): Inlet 3/8″, Outlet 1/4″

• Dimension (in): 17″×10.7″×12.2″

• Weight (Ibs): 41.9

• Warranty (year): 2

Specifications

Specification
A2L Compatible	Yes

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	42
Exterior Dimensions (D) (inches)	18.000000
Exterior Dimensions (W) (inches)	12.000000
Exterior Dimensions (H) (inches)	13.000000
Shipping Weight (lbs)	42.000000

Resources

NRDC4M_Brochure.pdf

NRDC4M_Manual.pdf

NRDC4M_Specifications.pdf
