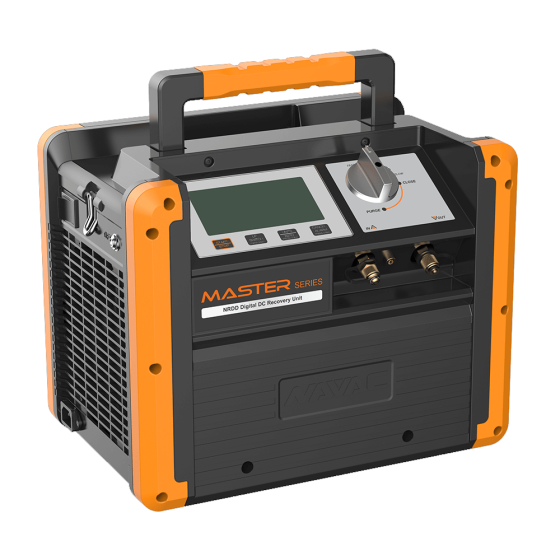

Navac Brushless DC Recovery Unit (A2L Compatible)

FEATURES

Lightweight, Fast and Compact

The NRDD recovery unit features a Brushless DC Motor making it lightweight and much more efficient, a large backlit display, twin cylinder design with 2-row oversized condenser, oil free compressor and self-purging functionality. The NRDD recovery unit is suitable for all commonly used refrigerants making it the ideal recovery unit!

Extend warranty to 3 years with registration at NavacGlobal.com within 30 days of purchase. Units purchased between March 1 and 31, 2020, are covered with registration within 30 days of April 1.

Leading Technology, Superior Quality, Best Experience.

Empowering you to work smarter!

SPECIFICATIONS

Refrigerant Type
• Category lll: R-12, R-134a, R-401C, R-500
• Category lV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509
• Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507

• Power Supply (V/Hz): 115V/60Hz
• FLA (A): 11
• Motor (HP): 1
• Max Current Draw (A): 12
• Compressor: Oil-less, Air-cooled, Piston style
• Automatic Safety Shut-Off: 558 psi/38.5 bar

UL Verified Recovery Rate lbs/min (kg/min)
• Direct Vapor: R-410A 0.75 (0.34), R-22 - 0.64 (0.29), R-134a - 0.57 (0.26)
• Direct Liquid: R-410A 14.44 (6.55), R-22 - 11.11 (5.04), R-134a - 7.85 (3.56)
• Push/pull Liquid: R-410A 18.41 (8.35), R-22 - 17.04 (7.73), R-134a - 12.81 (5.81)
• See comparison chart

• Dimension (in): 14.5″×9.9″×11.7″
• Weight (Ibs): 25.4
• Warranty (year): 3**
• **2-year over the counter warranty, extend to 3 years with registration at NavacGlobal.com within 30 days of purchase.
WARNING: This product operates under high pressure. Follow all safety guidelines regarding refrigerant handling including wearing Personal Protective Equipment such as safety glasses and gloves.
