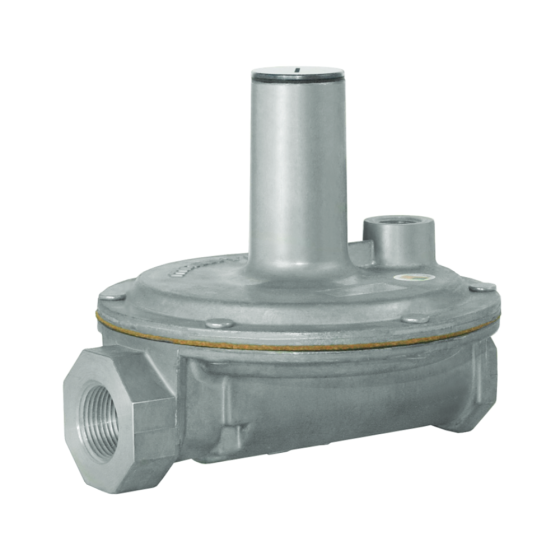

Maxitrol Gas Pressure Regulator (NG), 1" NPT
PRODUCT DETAILS
Maxitrol’s 325 Series regulators are for use on residential, commercial, and industrial applications. The 325 Series features a high leverage valve linkage assembly to deliver a lockup characteristic. The regulators are capable of precise control from full flow down to pilot flow.
APPLICATIONS
• Suitable for natural, manufactured, mixed gases, liquefied petroleum gases, LP gas-air mixtures, and gases of DIN EN 437 gas family 1, 2, and 3
FEATURES & BENEFITS
• Size: 1" NPT
• Certifications: ANSI Z21.18/CSA 6.3 Gas Appliance Pressure Regulators.
• CSA Certified Rated Inlet Pressure: 2 psi (13.8 kPa), 5 psi (34.5 kPa) .
• Emergency Exposure Limits: 65 psi (450 kPa) (inlet side only)
• Maximum Individual Load: 325,000Btu/h.
• Vent Connection Size: 3/8" NPT
• Ambient Temperature Ranges: -40 to 205°F (-40 to 96°C)
• Minimum Regulation: Suitable for pilot flow applications. (Circle P) (0.15 CFH NG), None (1.5 CFH NG).
• Housing Material: Aluminum
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 4.000000 | Exterior Dimensions (H) (inches) | 4.000000 | Shipping Weight (lbs) | 4.000000 |
