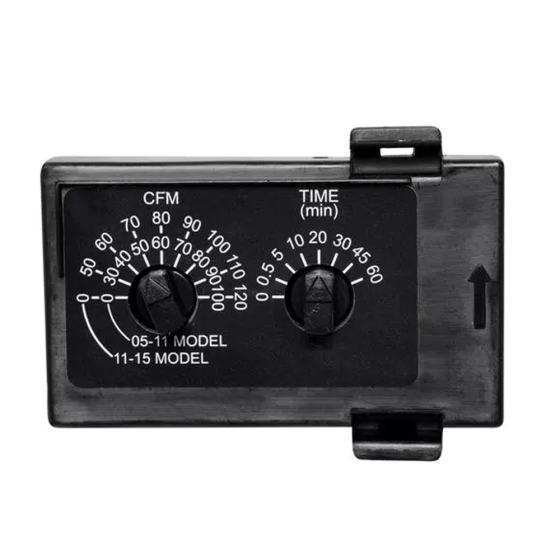

Panasonic WhisperGreen® Select™ Multi-Speed Module with Time Delay

APPLICATIONS

The Panasonic WhisperGreen® Select™ Multi-Speed Module with Time Delay allows you to select the proper CFM settings to satisfy ASHRAE 62.2 continuous ventilation requirements. The fan runs continuously at a preset lower level (0, 30-100 or 0, 50-120 CFM, in 10 CFM increments), then elevates to a maximum level of operation (50-80-110 or 110-130-150 CFM) when the wall switch is turned on, or when the Motion Sensor or Condensation Sensor module is activated. A High/Low delay timer returns the fan to the preset CFM level after a period of time set by the user. *Applies to both the Pre-Installed Multi-Speed with Time Delay, as well as the FV-VS15VK1 Multi-Speed with Time Delay Plug 'N Play module.

FEATURES & BENEFITS

• The Panasonic WhisperGreen® Select™ Multi-Speed Module with Time Delay is used with the following Panasonic WhisperGreen® Select™ Ventilation Fans:
FV-0511VK2, FV-0511VKL2, FV-0511VKS2, FV-0511VKSL2, FV-1115VK2, and FV-1115VKL2.
