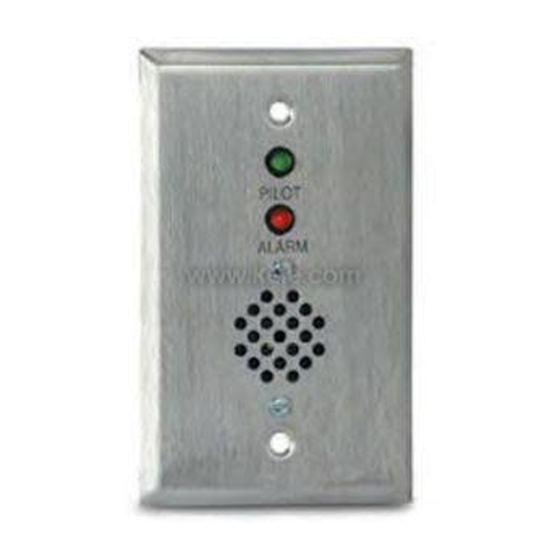

APC Remote Alarm with Pilot & Horn for Single Gang Box

Item

MS-RH/P/A

FEATURES

The MS-RH/P/A remote accessory is designed to be used with the Air Products and Controls Duct Smoke Detectors to provide audible and visual indication. These devices are constructed of attractive, yet durable brushed stainless steel and mount on a standard single gang electrical backbox.

• Compatible with Air Products and Controls Conventional duct smoke detectors.

• Green pilot LED

• Red alarm LED

• Horn

• These devices are constructed of attractive, yet durable brushed stainless steel and mount on a standard single gang electrical backbox.

Key Benefits

• Designed and Manufactured in the USA.

General

• Warranty 3 year

Electrical

• Status Indicator – Alarm Red

Environmental

• Operating Temperature (Min) 0°C

• Operating Temperature (Max) 49°C

• Operating Temperature 0 to 49°C

Conformance

• Standards UL 268

• Mechanical

• Weight: 0.45lbs

• Color: Silver

• Product Height (Wo/Base): 114.3mm

• Product Width: 69.85mm

• Housing Type: Face plate

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	0.45
Exterior Dimensions (D) (inches)	5.500000
Exterior Dimensions (W) (inches)	3.380000
Exterior Dimensions (H) (inches)	2.688000
Shipping Weight (lbs)	0.850000
