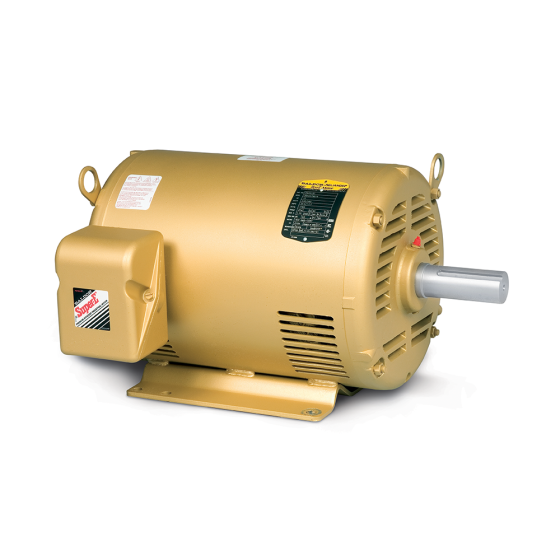

Belt Drive Blower Motor 7.5HP, 3470RPM, 208/230/460Vac, 16.0A, 40 °C

Item

EM3219T

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Horsepower: 7.5
• RPM: 3470
• Voltage: 230/460Vac
• Amperage: 16/8.0
• Capacitor: Not Required
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 184T
• Open Slotted Band (OPSB) Enclosure
• Insulation Class: F
• Ambient Temperature: 40 °C

Specifications

Specification
Bearing Type	Ball
Motor Frame	184T
Motor HP	7-1/2
RPM	3470

Electrical
Amps	16
Hertz	60
Voltage	208/230/460

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	78
Exterior Dimensions (D) (inches)	23.000000
Exterior Dimensions (W) (inches)	14.000000
Exterior Dimensions (H) (inches)	17.000000
Shipping Weight (lbs)	78.000000
