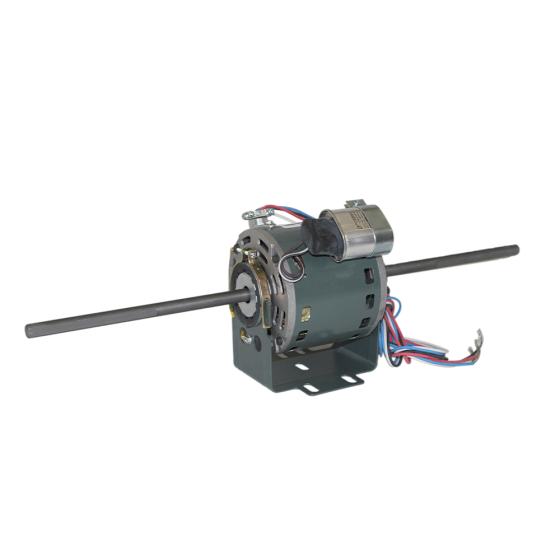

Double Shaft Direct Drive Blower Motor 1/6HP, 1450RPM, 115Vac, 1.8A, 7.5µF/370Vac, 3 Speed, (PSC)
Item
E020-70021517
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/6
• RPM: 1450
• Number of Speeds: 3
• Rotation: Counter-Clockwise (Lead End)
• Voltage: 115Vac
• Amperage: 1.8
• Capacitor: 7.5µF/370Vac
• 1 Phase
• Hz: 60
• Open, Air Over (OAO) Enclosure
• Insulation Class: B
Specification | |
---|---|
Motor HP | 1/6 | Motor Type | PSC | Number of Speeds | 3 | Rotation | CCW LE | RPM | 1450 |
Electrical | |
---|---|
Amps | 1.8 | Hertz | 60 | Voltage | 115 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 1.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
