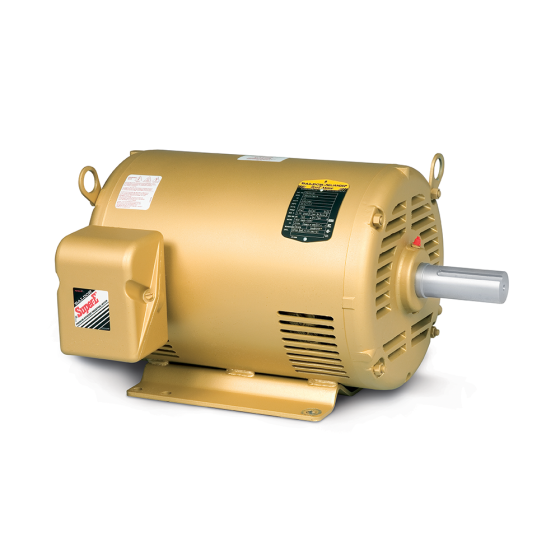

Belt Drive Blower Motor 5HP, 1750RPM, 208/230/460Vac, 13.2A, 40 °C

Item

EM3218T

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Horsepower: 5
• RPM: 1750
• Voltage: 230/460Vac
• Amperage: 13.2/6.6
• Capacitor: Not Required
• 3 Phase
• Hz: 60
• Bearing Type: Ball
• NEMA Frame Size: 184T
• Open Slotted Band (OPSB) Enclosure
• Insulation Class: F
• Ambient Temperature: 40 °C

Specifications

Specification
Bearing Type	Ball
Motor Frame	184T
Motor HP	5
RPM	1750

Electrical
Amps	13.2
Hertz	60
Voltage	208/230/460

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	85
Exterior Dimensions (D) (inches)	20.000000
Exterior Dimensions (W) (inches)	13.000000
Exterior Dimensions (H) (inches)	14.000000
Shipping Weight (lbs)	85.000000
