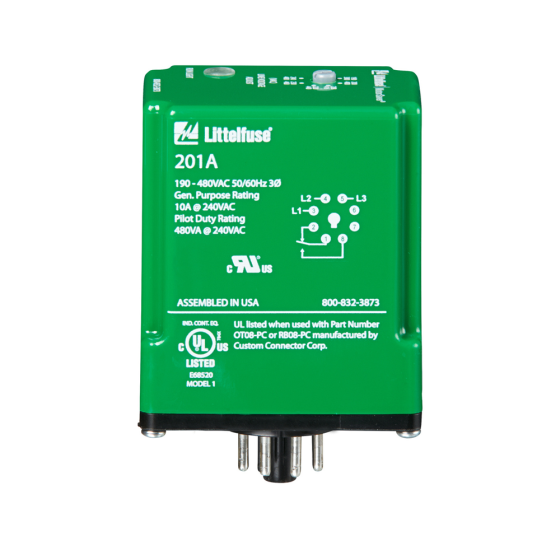

3-Phase Voltage/Phase Monitor

APPLICATIONS

The 201A is a 3-phase, auto-ranging, dual-range voltage monitor that protects 190-480VAC, 50/60Hz motors regardless of size. The product provides a user selectable nominal voltage setpoint and the voltage monitor automatically selects between the 200V and 400V range. The 201A includes advanced single LED diagnostics, where color and different light patterns distinguish between faults and normal conditions.

This unique microcontroller-based voltage and phase-sensing device constantly monitors the 3-phase voltages to detect harmful power line conditions. When a harmful condition is detected, the 201A’s output relay is deactivated after a specified trip delay. The output relay reactivates after power line conditions return to acceptable levels.

FEATURES & BENEFITS

• Input Voltage (V): 190 - 480 Vac
• Maximum Input Power: 5
• Input AC Line Frequency (Hz): 50 / 60
• Output Form: SPDT
• Output Load Rating (VA): Pilot Duty: 480 VA @ 240 Vac; General Purpose: 10 A @ 240 Vac
• Restart Delay Range: 2 s
• Trip Delay Range: Under/Over Voltage: 4 s; Unbalance/Phase faults: 2 s
• Trip Point Accuracy (%): ±1%
• Overvoltage Trip Voltage (%): 110%
• Overvoltage Reset Voltage (%): 107%
• Undervoltage Trip Voltage: 90%
• Undervoltage Reset Voltage (%): 93%
• Voltage Unbalance Trip Point (%): 6%
• Voltage Unbalance Reset (%): 4.50%
• Type of Detection: High Voltage Detection
• Termination Type: Torque: 12 in-lbs.; 12 - 22 AWG solid or stranded
• Mounting Method: DIN rail or surface mount (plug into OT08-PC socket)
• Operating Temperature: -20° to 70°C (-4° to 158°F)
• Humidity: 10 - 95% non-condensing per IEC 68-2-3
• Dimensions: 1.75 H x 2.38 W x 4.13 D in. (44.5 x 60.3 x 104.8 mm)
