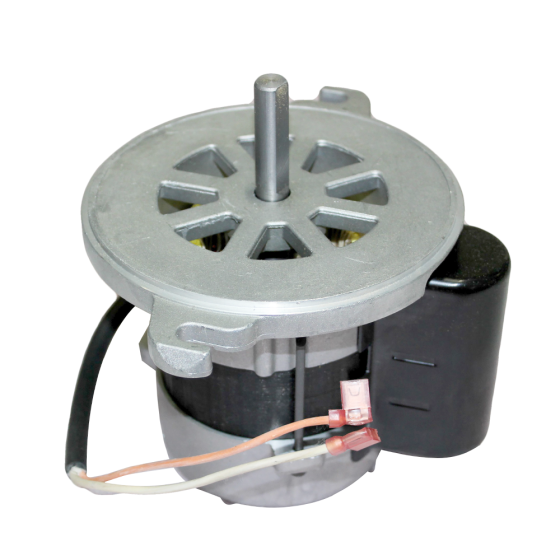

Burner Motor 1/7HP, 3450RPM, 115Vac, 1.7A, 16µF/240Vac, 1 Speed, 40 °C, (PSC)
Item
21805U
FACTORY AUTHORIZED PART BENEFITS
• Meets exact part design life testing for maximum reliability and durability.• Provides exact drop-in replacement.
• Meets exact design specifications for optimum system performance.
• Preserves equipment warranty.
• Maintains agency listings and safety standards.
• Design specifications are proprietary and not available to other parts manufacturers.
FEATURES & BENEFITS
• Motor Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/7
• RPM: 3450
• Number of Speeds: 1
• Voltage: 115Vac
• Amperage: 1.7
• Capacitor: 16µF/240Vac
• 1 Phase
• Hz: 60
• Continuous Duty
• Insulation Class: B
• Ambient Temperature: 40 °C
| Specification | |
|---|---|
| Motor HP | 1/7 | Motor Type | PSC | Number of Speeds | 1 | RPM | 3450 |
| Electrical | |
|---|---|
| Amps | 1.7 | Hertz | 60 | Voltage | 115 |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 7.4 | Exterior Dimensions (D) (inches) | 6.850000 | Exterior Dimensions (W) (inches) | 6.770000 | Exterior Dimensions (H) (inches) | 7.950000 | Shipping Weight (lbs) | 7.400000 |
