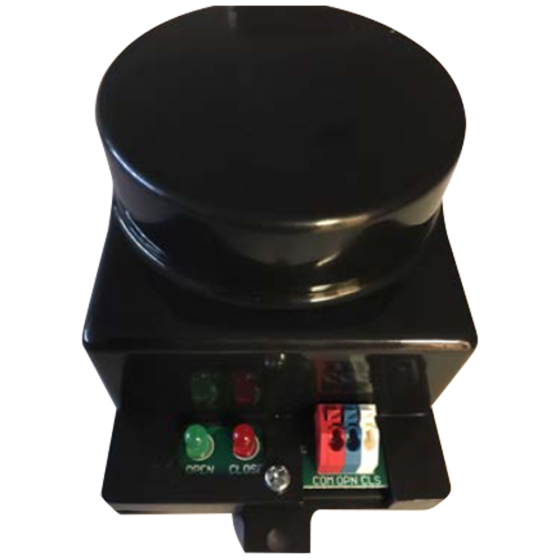

Damper Actuator 24V, PO/PC

Item

MDM-R

Skip to the beginning of the images gallery

FEATURES & BENEFITS

• Voltage: Nominal 24VAC 50/60Hz, 6W, 4VA
• Current: Nominal 100mA Operating, 1mA non-operating
• Torque: 283 in/oz., 17.70in/lbs., 2Nm
• Travel Timing: 13.5 Seconds
• Connection: Screwless Terminals

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	3
Exterior Dimensions (D) (inches)	5.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	3.000000

Resources

MDM-R_DATA.pdf
