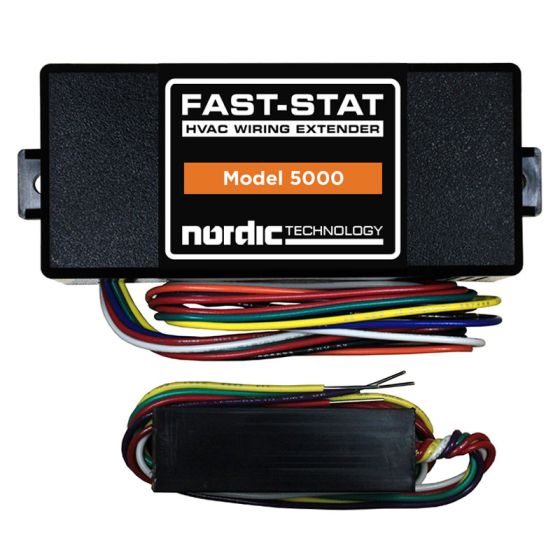

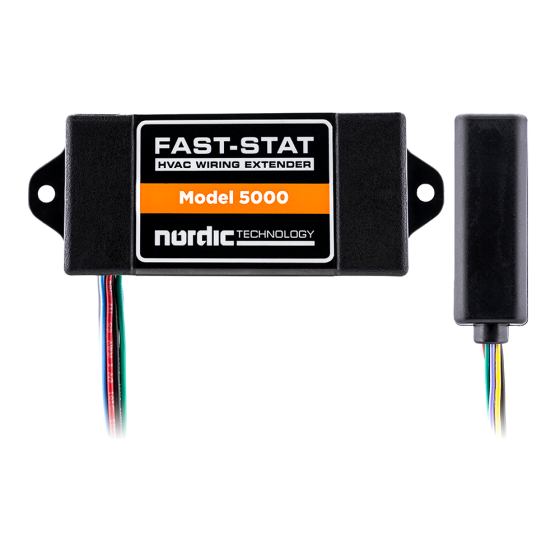

FAST-STAT Model 5000 Wiring Extender 24Vac

  • California Prop 65


The Model 5000 provides three additional control wires and a common ‘C’ connection between a thermostat and indoor unit.


• Cannot be used to extend the wiring between an indoor and outdoor unit.
• Compatible with most 24VAC heating and cooling systems.
• This product should only be installed by a qualified technician.
• Requires a Class 2 transformer providing 23-28VAC.
• The total connected load must not exceed 2 amps.
• The connected load cannot operate at more than 30VAC (not designed for direct connection to 120VAC equipment).

Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 1
Exterior Dimensions (D) (inches) 4.800000
Exterior Dimensions (W) (inches) 7.600000
Exterior Dimensions (H) (inches) 1.600000
Shipping Weight (lbs) 2.000000
