Gas Conversion Kit for Manufactured Homes, 40k-120k BTUh

FEATURES

The AGAGCAMHC01A Gas Conversion Kit for Manufactured Homes is designed for use in furnaces that use natural gas or propane gas. This kit modifies furnaces for use in a manufactured (mobile) home. This kit is only for use in single stage 40,000 through 120,000 BTUh gas input models when installed as a direct vent (2-pipe) furnace.

NOTE: This kit is not approved for the 140,000 BTUh gas input model furnace, any 2-stage and variable speed models, any non-direct vent (1-pipe) applications nor any furnace that does not have a sealed combustion system with provisions for outside air.

More parts are shipped in the kit than will be needed to complete the conversion. When installation is complete, the extra parts are to remain with the furnace for future use.

See in instructions for furnace compatibility.

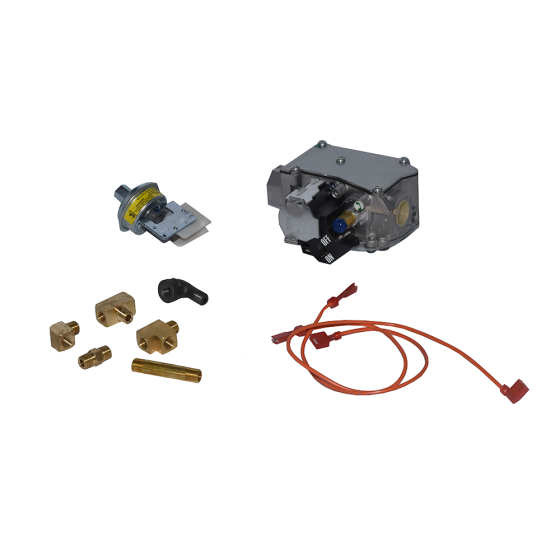

INCLUDES

• 1 Adjustment Tool
• 1 Drill Bit 7/64”
• 1 Gas Valve
• 1 Connector 1/8” NPT
• 1 Elbow, Street Brass 1/8” NPT
• 1 Elbow, Street 150# 1/8” NPT
• 1 Tee, Street Brass
• 1 Tee Brass
• 1 Nipple HEX Brass
• 7 Screw HEX HD 8AB 3/4
• 1 Pressure Switch
• 1 Wire Tie
• 7 Orifice 1.25mm
• 1 Wire Assembly
• 1 Wire Assembly
• 1 Installation Label
• 1 Adhesive Pouch
• 1 Label, Conversion
• 1 Conversion Rating Plate
• 1 Instructions
