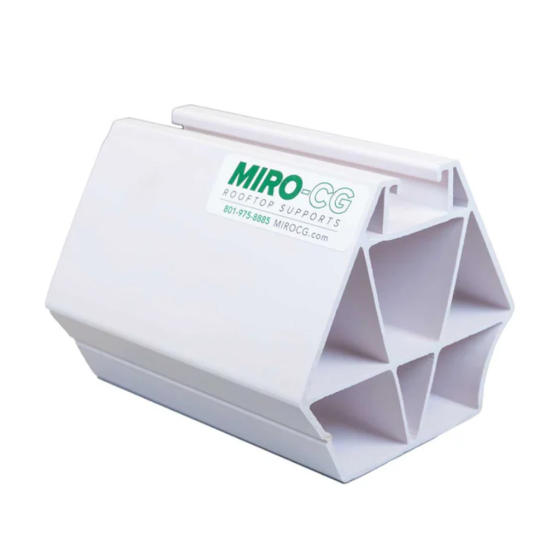

Miro-CG 6" M-Hex Rooftop Pipe Support with Strut Channel 4.5" x 5.2" x 6", 300lbs.

Item

CG-M-HEX-6

Skip to the beginning of the images gallery

FEATURES

The M-Hex rooftop pipe support is designed to support a variety of rooftop piping and conduit. The unique design provides 3 options for use: the strut side can be used to attach clamps & fittings for conduit & other applications, the pipe seat side can be used to place up to a 3” pipe directly on the pipe saddle, and the drill side allows attachment of other accessories.

• Material: PVC with 3% CPE (Chlorinated Polyethylene) for UV resistance & low-temperature performance.

• Size: 4.5” H, 5.2” W, 6” L

• Suggested Rooftop Loading: 58 lbs at 3 PSI applied to surface. Max Product Load = 300 lbs.

• Spacing: Supports should not exceed 10’ on center

• Warranty: 2 year limited warranty

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	6.000000
Exterior Dimensions (W) (inches)	5.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	2.000000

Resources

CG-M-HEX-6_TDS.pdf
