Milwaukee® M18™ FUEL™ 1/4" Hex Impact Driver (Tool Only)

FEATURES

Our new M18 FUEL™ SURGE™ ¼” Hex Hydraulic Driver has been redesigned from the ground up to significantly increase productivity while maintaining industry-leading reductions in sound and vibration. Optimized for use in occupied spaces and to reduce end user fatigue, the new M18 FUEL™ SURGE™ utilizes a redesigned FLUID-DRIVE™ Hydraulic Powertrain to deliver 50% quieter operation with smoother driving and 3X less vibration compared to standard impact drivers. The second-generation Hydraulic Driver leverages a POWERSTATE™ Brushless Motor to deliver up to 3X faster driving speeds than the previous generation and 1000in-lbs of torque for added capability. REDLINK PLUS™ Intelligence features advanced electronics that provide increased thermal capability for more back-to-back applications and protects the tool from damage caused by overheating. Reducing size to improve access, the new tool is 0.7” shorter. The second-generation tool also includes Tri-LED lighting for increased workspace visibility. Continuing to lead in sound and vibration reduction, the second-generation M18 FUEL™ SURGE™ ¼” Hex Hydraulic Driver now delivers greater speed and capability for increased productivity across a variety of applications.

• 50% quieter than a standard impact driver

• Smoother driving and 3X less vibration than a standard impact driver

• Up to 3X faster application speed than the previous generation

• FLUID-DRIVE™ Hydraulic Powertrain reduces metal on metal contact within the tool for quieter operation and a smoother driving experience

• POWERSTATE™ brushless motor delivers 1000in-lbs of torque

• REDLINK PLUS™ provides increased thermal capability and prevents damage to the tool and battery due to overloading or overheating

• Compact size (4.33”) for access in tight spaces

• 3-MODE DRIVE CONTROL™ provides greater control over speed and power

• Tri-LED lighting for maximum workspace visibility

• Single handed bit insertion

• Compatible with all M18™ batteries

SPECIFICATIONS

• Battery System: M18™

• FUEL™: Yes

• Motor Type: POWERSTATE™ Brushless

• Chuck Type: Hex Quick Change

• Maximum Torque: 1000 in-lbs

• IPM Range: 6300 IPM

• DRIVE CONTROL™: 3-Mode

• RPM Range: 3200 RPM

• Height: 7.78 in

• Length: 4.33 in

• Width: 2.46 in

• Weight Excluding Battery: 2.4 lb

• Warranty: 5 Year (Tool), 3 Years (Battery)

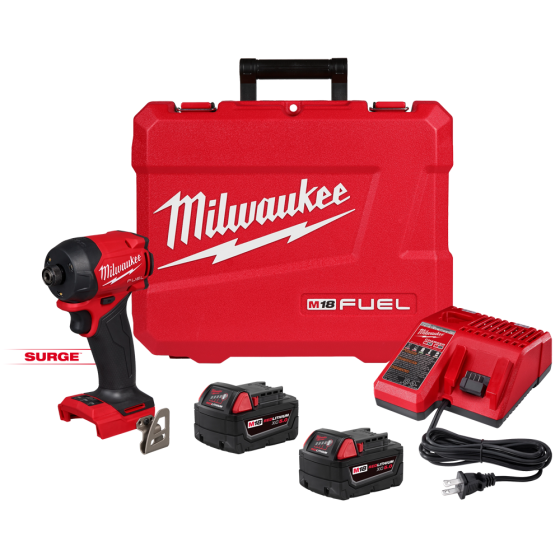

INCLUDES

• M18 FUEL™ SURGE™ 1/4" Hex Hydraulic Driver

• (2) M18™ REDLITHIUM™ XC5.0 Extended Capacity Battery Pack

• M18™ & M12™ Multi-Voltage Charger

• Carrying Case

• Belt Clip

Specifications

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	3
Exterior Dimensions (D) (inches)	22.000000
Exterior Dimensions (W) (inches)	18.000000
Exterior Dimensions (H) (inches)	6.000000
Shipping Weight (lbs)	3.000000
