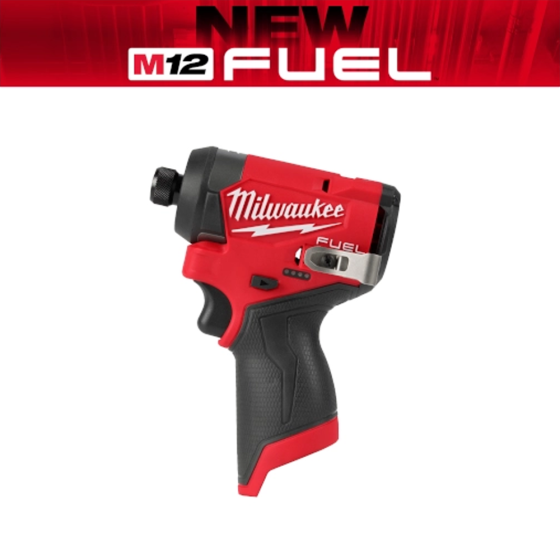

Milwaukee® M12 FUEL™ 1/4" Hex Impact Driver

Item
3453-20
  • California Prop 65

FEATURES

Our M12 FUEL™ 1/4" Hex Impact Driver is the Fastest Subcompact Impact Driver, the Most Compact, and provides Maximum Workspace Visibility. The POWERSTATE™ Brushless motor delivers the fastest driving speeds in the subcompact class for unmatched productivity. At only 5" long and 7.6" tall (with M12™ CP 2.0 Ah battery), this solution is the most overall compact impact driver in class, allowing greater access in tight spaces and overall portability. Tri-LEDs surround the bit accessory with brighter lights and less shadows providing maximum workspace visibility. Our REDLINK PLUS™ Intelligence delivers top of the line thermal performance allowing more work to be completed. Get all day runtime when paired with our M12™ REDLITHIUM™ battery pack. Our M12 FUEL™ Impact Driver is part of our M12™ System which is fully compatible with over 150 solutions.


  • • POWERSTATE™ Brushless Motor delivers up to 1,500 in-lbs. of torque
  • • Only 5" in length for most access in tight spaces
  • • Tri-LED illuminates workspace
  • • Up to 3600 RPMs in Mode 3
  • • 4-Mode Drive Control with dedicated self tapping screw mode
  • • Light Weight at 2 lbs for tool belt portability and less fatigue in the work day
  • • Single Handed Bit Insertion for Ease of Use
  • • REDLINK PLUS intelligence provides the ability to drive more fasteners back to back
  • • All-metal belt clip for portability
  • • Compatible with Milwaukee Accessory Bit Holder 49-16-3697
  • • Compatible with all M12™ batteries & chargers
  • • Part of the M12 System, featuring over 125+ Tools
  • • Fastest Subcompact Impact Driver
  • • Most Compact
  • • Maximum Workspace Visibility

  • SPECIFICATIONS

  • • Battery System: M12™
  • • Motor Type: POWERSTATE™ Brushless
  • • RPM Range: 0 - 3,600 RPM
  • • IPM Range: 0 - 4,000 IPM
  • • Length: 5 in
  • • Weight Excluding Battery: 1.6 lb
  • • Chuck Type: Hex Quick Change
  • • Chuck Size: 1/4 in
  • • ONE-KEY™ Enabled: No
  • • Warranty: 5 Year Limited Warranty

  • INCLUDES

  • • M12 FUEL™ 1/4" Hex Impact Driver
  • • Belt Clip
  • Safety Standards
    California Prop 65 Yes
    Weights and Dimensions
    Operating Weight (lbs) 3
    Exterior Dimensions (D) (inches) 8.000000
    Exterior Dimensions (W) (inches) 12.000000
    Exterior Dimensions (H) (inches) 5.000000
    Shipping Weight (lbs) 3.000000
