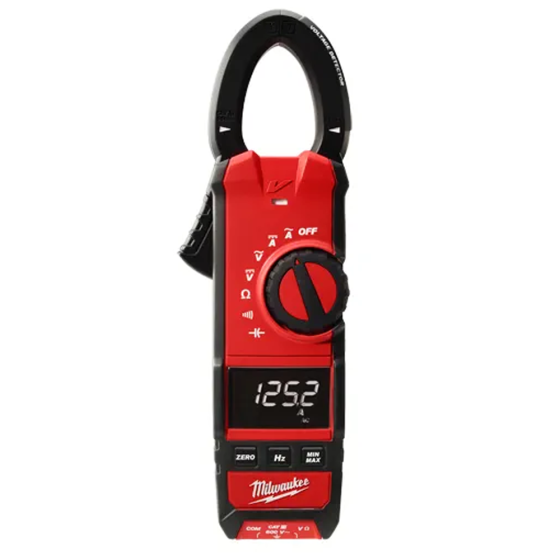

Milwaukee® Auto-Ranging True RMS Clamp Meter 600A
FEATURES & BENEFITS
• Measures up to 600 amps AC/DC, Large 1.30” jaw opening
• Thin Jaw Profile for easier wire measurement in panels or in bundles
• Wide Voltage range to 600 AC/DC volts
• True-RMS for accurate measurement in all applications
• Built-In Voltage Detector and LED Work Light
• Frequency Measurement
• High Contrast, White on Black Display with Backlight for easy reading
• Rugged over-molding increases durability and user grip
• CAT III 600V for increased safety
• Tool Warranty: 5 Years
• Battery Type: Alkaline (AA)
• Display Type: High Contrast White on Black
• Switch Type: Dial
• Length: 9 1/2"
• TRMS: Yes
• Jaw Size: 1.3"
• Safety Rating: CAT III 600V
• Current AC: 600A
• Current DC: 600A
• Voltage AC DC: 600V
• Frequency: Yes
• Resistance: 6 kΩ
• Continuity: Yes
• Capacitance: Yes
• Hold: Yes
• Display Backlight: Yes
• Non-Contact Voltage: Yes
• LED Work Light: Yes
• Rugged Over molding: Yes
• Indication: Visual (for NCVD)
INCLUDES
• (1) Clamp Meter (2237-20)
• (1) Test Lead Set
• (2) AA Batteries (1) Manual
Safety Standards | |
---|---|
California Prop 65 | Yes |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 4 | Exterior Dimensions (D) (inches) | 10.000000 | Exterior Dimensions (W) (inches) | 5.000000 | Exterior Dimensions (H) (inches) | 2.000000 | Shipping Weight (lbs) | 4.000000 |
