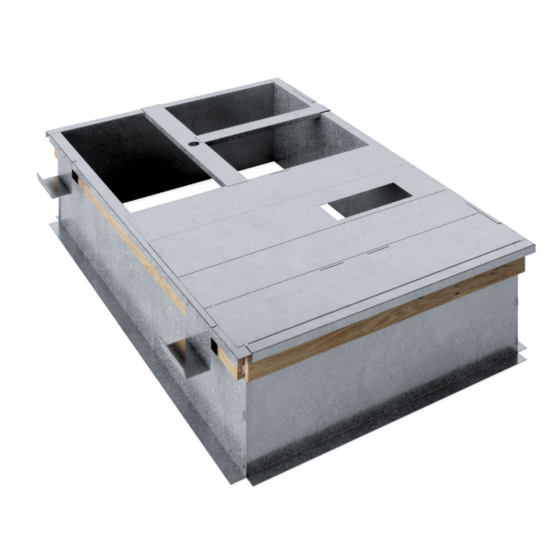

MicroMetl Roof Curb, 14" Tall, Knockdown, No Pitch, Non-Insulated, Structurally Calculated
Item
CRBK-SRT34HA-1411
SPECIFICATIONS
• Weight: 123lbs/55.79kg• Assembled Length O.D.: 81.75
• Assembled Width O.D.: 53.50
• Composition: Galvanized Sheet Metal
• Insulated: Non Insulated
• Perimeter: Full Perimeter
• Support Gauge: 16
• Hold Down Gauge: 14
• Deck pan: Included
• Deck pan Description: Galvanized Metal, Using 1 Inch Insulation, R Value 4.2
| Specification | |
|---|---|
| Adjustable Pitch | No | Curb Height | 14" | Structurally Calculated | Yes | Structure | Knockdown |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 123 | Exterior Dimensions (D) (inches) | 82.000000 | Exterior Dimensions (W) (inches) | 54.000000 | Exterior Dimensions (H) (inches) | 14.000000 | Shipping Weight (lbs) | 123.000000 |
