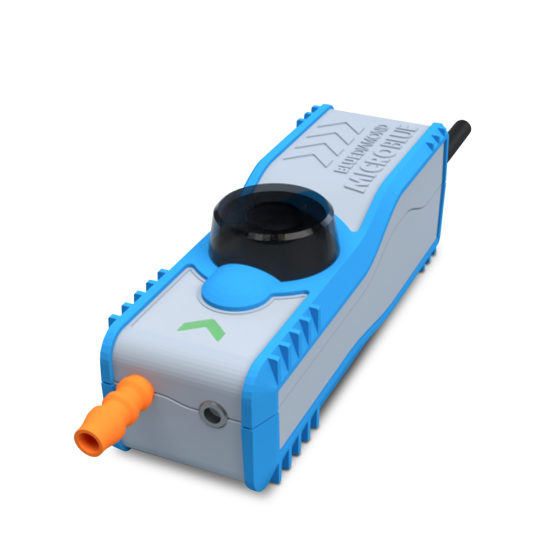

BLUEDIAMOND® MICROBLUE® Condensate Pump 1.3GPH, up to 18k BTU, 110-230Vac
APPLICATIONS
The MicroBlue ® uses a revolutionary dynamic diaphragm control technology, allowing it to outperform other condensate pumps. The compact, anti-vibration design makes it suitable for conduit installations or similar discrete locations.
Thanks to intelligent sensing technology the pump can dynamically adjust to condensate levels to operate in the quietest and most efficient possible way.
Reservoir and pump interconnectivity allows onboard intelligence to provide installers with accurate system analysis via a light display on the pump.
Modular power supply design allows express installation, by simplifying the fiddly cable routing process.
FEATURES & BENEFITS
• 17 dba
• Maximum Flow: 1.3 Gallons per Hour
• Maximum Head: 16 Feet
• Maximum Lift: 6 Feet
• The MICROBLUE® can be mounted in any orientation up to 6FT away from the air conditioning unit.
• Electrical rating: 115-230V, 0.08-0.05A, 50/60Hz
• Fuse rating: T0.5AH250V/ NOT INCLUDED
• Size: 5.8”x1.44”x1.56” (LxWxH)
• Inlet/Outlet size: Ø0.24”
• Alarm relay: MAX: 5A 240V AC/5A 30V DC
• Tubing: Use specific ¼ ID braided tube on pump inlet & outlet.
Electrical | |
---|---|
Voltage | 110/208/230 |
Safety Standards | |
---|---|
California Prop 65 | Yes |
Specification | |
---|---|
Gallons Per Hour | 1.3 |
Weights and Dimensions | |
---|---|
Operating Weight (lbs) | 1 | Exterior Dimensions (D) (inches) | 5.000000 | Exterior Dimensions (W) (inches) | 1.000000 | Exterior Dimensions (H) (inches) | 1.000000 | Shipping Weight (lbs) | 1.000000 |
