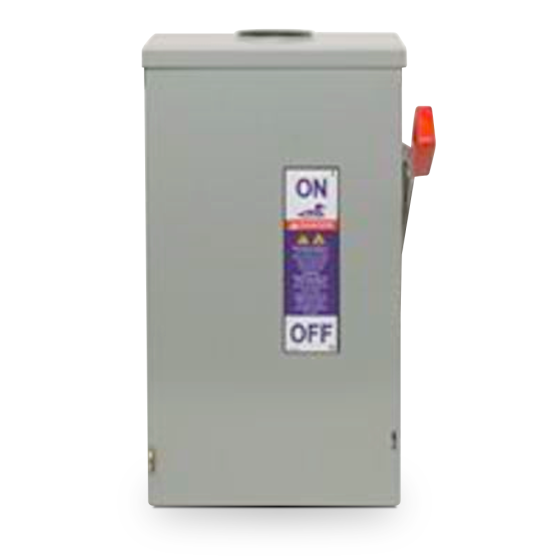

• Designed for commercial and industrial applications where safety, high performance and continuity of service are essential. • Listed to UL standard 98 enclosed and dead front switches. • Suitable for use as service equipment when installed in accordance with the National Electrical Code. • Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches. • Meets or exceeds NEMA KS1 standard for enclosed switches - type HD. • Fusible and non-fusible switches available. • Quick-make, quick-break mechanism. • 60/75° C conductor rating. • Full cover interlocks. • Voltage: 600 Vac • Amperage: 60 • Poles: 3 • Wires: 3 • Fusing: Fusible • Duty: Heavy • Handle Style: Donut • Enclosure Type: NEMA 3R (Outdoor) • Wire Range: 12-2 • 125 Vdc: 5.0 hp • 250 Vdc: 10.0 hp • 480 Vac, NEC Std, 1-ph: 5.0 hp • 480 Vac, NEC Std, 3-ph: 15.0 hp • 480 Vac, Time Delay, 1-ph: 20.0 hp • 480 Vac, Time Delay, 3-ph: 30.0 hp • 600 Vac, NEC Std, 1-ph: 10.0 hp • 600 Vac, NEC Std, 3-ph: 15.0 hp • 600 Vac, Time Delay, 1-ph: 25.0 hp • 600 Vac, Time Delay, 3-ph: 50.0 hp • CSA Certified: CUL • UL Listed: Yes • Height: 8.7 • Depth: 4.8 in • Width: 10.7 • Gross Weight: 18.6 • Weight: 18.0 lb.
