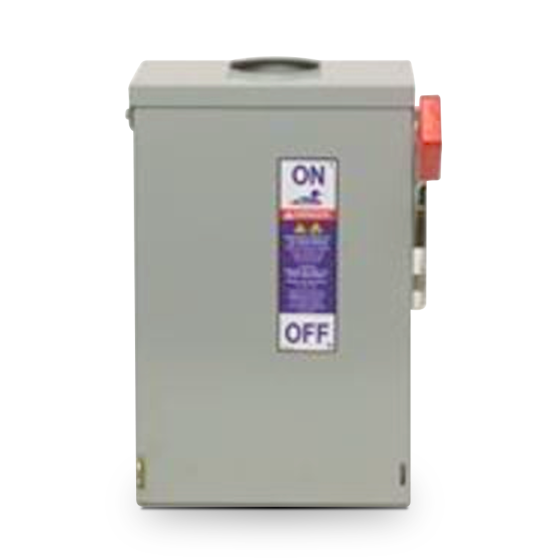

30A Heavy Duty Fusible Disconnect 600Vac, 3 Phase, NEMA 3R

Item
MHF361R
  • California Prop 65

FEATURES & BENEFITS

• Designed for commercial and industrial applications where safety, high performance and continuity of service are essential.
• Listed to UL standard 98 enclosed and dead front switches.
• Suitable for use as service equipment when installed in accordance with the National Electrical Code.
• Certified to CSA standard 22.2 no. 4-04 enclosed and dead front switches.
• Meets or exceeds NEMA KS1 standard for enclosed switches - type HD.
• Fusible and non-fusible switches available.
• Quick-make, quick-break mechanism.
• 60/75° C conductor rating.
• Full cover interlocks.
• Voltage: 600 Vac
• Amperage: 30
• Poles: 3
• Wires: 3
• Fusing: Fusible
• Duty: Heavy
• Handle Style: Donut
• Enclosure Type: NEMA 3R (Outdoor)
• Wire Range: 12-2
• 125 Vdc: 2.0 hp
• 250 Vdc: 5.0 hp
• 480 Vac, NEC Std, 1-ph: 5.0 hp
• 480 Vac, NEC Std, 3-ph: 5.0 hp
• 480 Vac, Time Delay, 1-ph: 7.5 hp
• 480 Vac, Time Delay, 3-ph: 15.0 hp
• 600 Vac, NEC Std, 1-ph: 3.0 hp
• 600 Vac, NEC Std, 3-ph: 7.5 hp
• 600 Vac, Time Delay, 1-ph: 10.0 hp
• 600 Vac, Time Delay, 3-ph: 20.0 hp
• CSA Certified: CUL
• UL Listed: Yes
• Height: 8.0
• Depth: 4.0 in
• Width: 9.7
• Gross Weight: 10.4
• Weight: 11.0 lb.

Electrical
Phase 3
Voltage 600
Safety Standards
California Prop 65 Yes
Specification
Amp Rating 30
Weights and Dimensions
Operating Weight (lbs) 20
Exterior Dimensions (D) (inches) 4.000000
Exterior Dimensions (W) (inches) 8.200000
Exterior Dimensions (H) (inches) 13.100000
Shipping Weight (lbs) 20.000000
