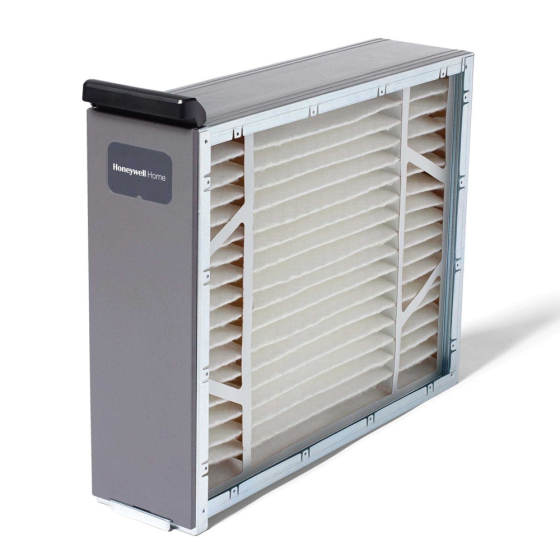

Honeywell® Media Air Cleaner 16" x 20", 1,200CFM, (MERV 13)

APPLICATIONS

The F200 Media Air Cleaner captures a significant amount of the airborne particles in the air circulated through the unit. Recommended as a basic minimum air quality product.

PRODUCT DETAILS

• High efficiency charged-media filter captures particles as small as 0.3 microns.
• Applicable to all gas, oil and electric forced air furnaces and to compressor cooling up to 5 tons.
• Mounts in the return air duct.
• Rugged zinc-coated, roll-formed cabinet resists corrosion and can support weight of residential furnace and evaporator coil.
• Requires no electrical connections.
• Mounts in any position.
• Requires no maintenance except periodic media filter replacement.
• Quick and easy media filter replacement.
• Later upgrade to higher performing media or electronic air cleaner is easy.
• Airflow Capacity (cfm): 1200 cfm MAX
• Airflow Capacity (m³/hr): 2040 m³/hr MAX
• Efficiency Standard: Efficiency ratings are based on ASHRAE Standard 52.2-1999.,Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles E3=3.0 to 10.0 microns
• Fractional Efficiency: E1=63%, E2=91%, E3=99%
• Replacement Media: MERV 11 - FC100A1003, MERV 13 - FC200E1003
• Minimum Efficiency Reporting Value (Media Filters Only): MERV 13
• Static Pressure Drop (in. w.c.): 0.3 at 500 FPM
• Approvals, Underwriters Laboratories Inc.: Filter Element: UL Listed, UL900, Class 2

INCLUDES

• Cabinet
• Access Door
• MERV 13 Filter
