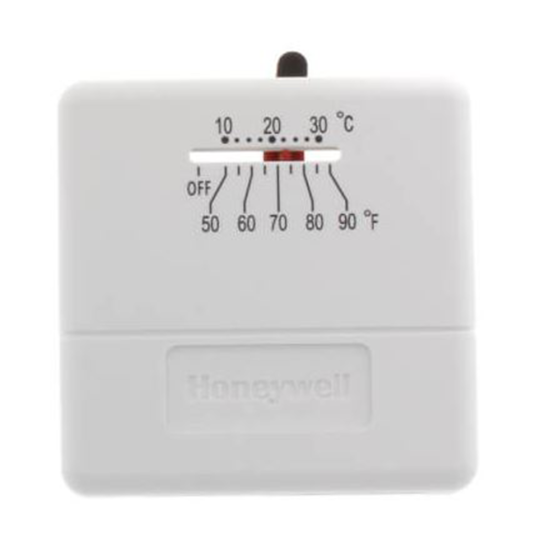

Honeywell Home Mechanical Thermostat 1H, 24Vac
Item
T812A1010
FEATURES & BENEFITS
• Application: Heat Only
• Dimensions (in.): 3 1/8 in. high x 3 1/8 in. wide x 7/8 in. deep
• Dimensions (mm): 79 mm high x 79 mm wide x 23 mm deep
• Mounting: Square
• Electrical Ratings: 18 to 30 Vac
• Stages: 1 Heat
• Operating Humidity Range (% RH): 5 to 90% RH
• Supply Voltage: 20 to 30 Vac
• Switch Positions (System): Positive Off
• Color: Premier White®
• Sensor Element: Bimetal
• Accuracy (F): ±3 F
• Accuracy (C): ±1.5 C
• Switching Action: SPST
• Switch Type: Snap action
• Terminal Designations: W, R
• Setting Temperature Range (F): 50 F to 90 F
• Setting Temperature Range (C): 10 C to 32 C
• Heat Current: 1.0A running, 2.5A inrush at 24 Vac
• Fan Current: 1.0A running, 5A inrush at 24 Vac
| Specification | |
|---|---|
| Power Method | Hardwire (24Vac) | Stages (Conventional) | 1 Heat, 0 Cool | Millivolt Compatible | No | Programmable | No |
| Safety Standards | |
|---|---|
| California Prop 65 | Yes |
| Weights and Dimensions | |
|---|---|
| Operating Weight (lbs) | 0.01 | Exterior Dimensions (D) (inches) | 4.600000 | Exterior Dimensions (W) (inches) | 3.200000 | Exterior Dimensions (H) (inches) | 1.200000 | Shipping Weight (lbs) | 0.010000 |
