ZoneFirst Universal Zone Control Panel

FEATURES

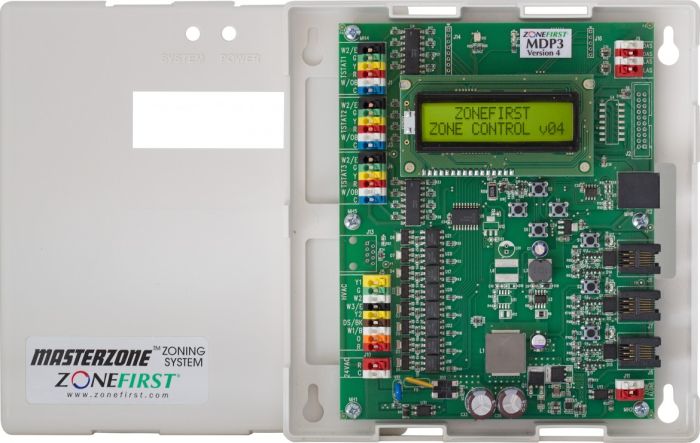

The NEW Digi-Zone™ Control Panel, Model MDP3 Ver. 4, is a two and three zone, expandable, all in-one zone control panel. The digital menu driven display simplifies system set-up and eliminates DIP Switches and adjustable dials to set timings and temperatures. The NEW MDP3 Ver. 4 controls only the New Plug-in Zone Motors that use modular cords, supplied with each damper. This panel is used exclusively with the ZDSP, ZDBP, OZD, RDP, RRP and RTP dampers.

• System Type = Gas/Electric or Heat Pump
• Heat Pump Type = Conventional or Fossil/Dual Fuel
• Outdoor Balance Point (OBP) Adjustable – 5°F -53°F
• Thermostat Type – H/C or HP
• HP Stat RV – O or B
• Number of Zones – Adjustable 2 to 103
• Fan On In Heat – On or Off
• Fan On In Purge – On or Off
• Emergency Heat – On or Off
• Minimum Compressor On Timer – On (2 mins) or Off
• Staging – Adjustable Timer, # of zones calling or supply air temperature (stage optimization)
• Changeover Timer = Adjustable 10-30 Minutes
• Leaving Air Sensor – Capacity protection to shut off HVAC
• Centra-Zone™ - Zone 1 Master Changeover Disabled or Enabled
• DS-BK = Switch to low speed based on percentage of zones calling.
• Test – Enabled or Disabled

Panel and Case Specifications

• Construction – ABS plastic
• Dimensions – 7-5/8”x 7-1/4” x 1-3/8”
• Voltage – 24 Volts AC, 50/60 Hz
• Temperature Rating - 0°F to 160°F Operating, -20°F to 180°F Storage
• Humidity – 5% to 95% Non-Condensing
• Connection: Colored Screwless Push-In terminal blocks
