There are many applications where machines are located in basements or other non-critical areas, where “some” isolation or a noise break is needed, or the use of a resilient friction pad eliminates the need for bolting down. These are the locations where pads are used on a “They serve the purpose” basis. The thickest is always best and Natural Rubber the most efficient.
FEATURES & BENEFITS

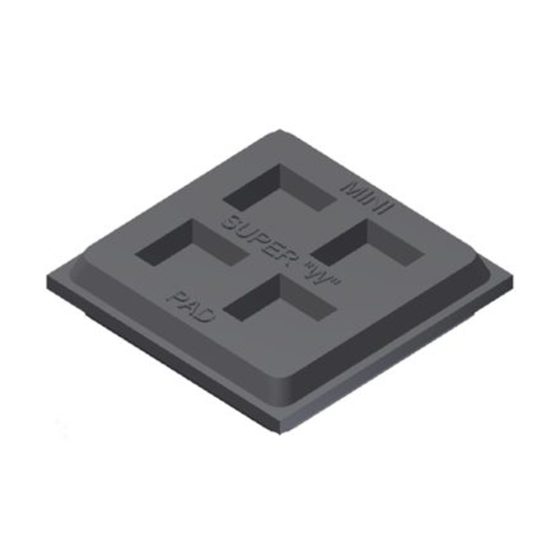

• The 2X2 Mini Super W Pad sheet 18” x 18” x 3/8” (450 x 450 x 20mm) consists of 81 – 2” (50mm) modules. The 2” (50mm) squares are separated by a thin web that is easily cut to provide evenly dimensioned pads such as 2” x 2” (50 x 50mm), 2” x 4” (50 x 100mm), 4” x 4” (100 x 100mm), 6” x 8” (150 x 200 mm), etc. Our Super W pad is one of the most versatile and efficient pads on the market. • Size (in): 18 x 18 • Duro-meter Standard: 45 • Recommended Maximum Load Deflection (in): 0.113 (15%) • Recommended Load per 3x3 Square (lbs): 180 • Recommended Load per Area (lbs/in²): 45 • Maximum Load per Area(lbs/in²): 60
