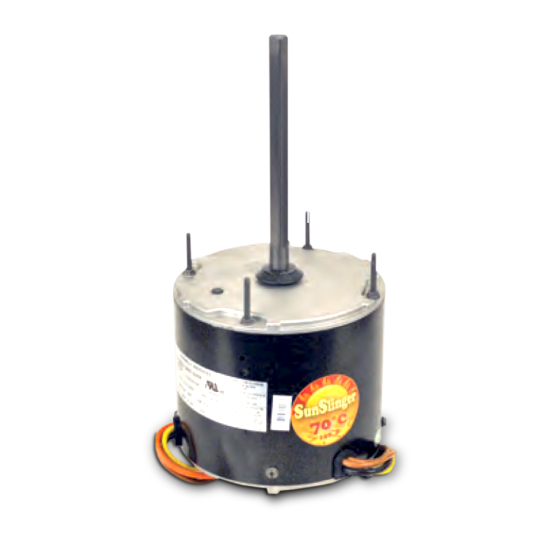

Mars® Condenser Fan Motor 1/6 HP, 1075 RPM, 208/230 Volts, 0.9 FLA, 5µF/370v Cap Rating, 1 Speed
MARS 70°C SunSlinger totally enclosed condenser fan motors are designed for either vertical shaft-up or shaft-down applications in a variety of ambient conditions. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.
FEATURES & BENEFITS• All angle.
• Rheem mounting holes w/screws installed.
• Trane 4.33 bolt circle mounting holes with self tapping screws.
• Thru bolt or band mounting.
• Water slinger on shaft.
• Capacitor requirement noted on motor label.
• Extra set of nuts on mounting studs.
• Class “B” insulation.
• Single phase, 60 Hertz.
• Thermal overload protected.
• Fan duty, continuous, air over.
• Totally enclosed.
• 36 inch leads.
• UL Recognized.
|Ambient Temperature||70 °C||Bearing Type||Ball Bearing||Motor Frame||48||Motor HP||1/6||Motor Type||PSC||Mounting Type||Thru Bolt/Mounting Holes/Belly Band||Number of Speeds||1||Rotation||CW/CCW||RPM||1075||Shaft Diameter||1/2"||Shaft Length||6-1/2"|
|California Prop 65||Yes|
|Weights and Dimensions|
|Operating Weight (lbs)||15||Exterior Dimensions (D) (inches)||8.0000||Exterior Dimensions (W) (inches)||8.0000||Exterior Dimensions (H) (inches)||12.0000||Shipping Weight (lbs)||15.0000|
