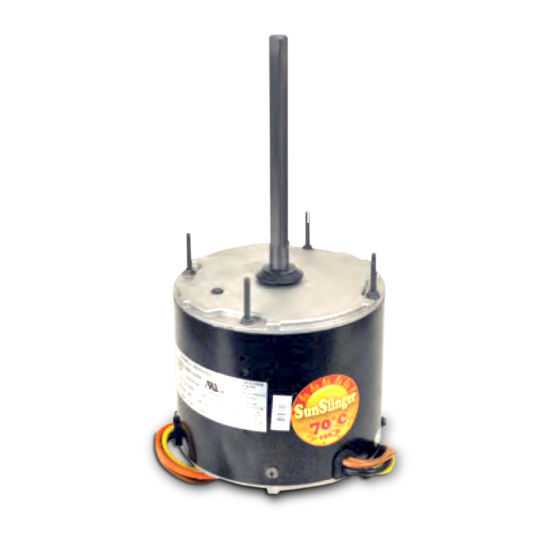

Mars® Condenser Fan Motor 1/2 HP, 825 RPM, 208/230 Volts, 2.8 FLA, 12.5µF/370v Cap Rating, 1 Speed

Item
20746
  • California Prop 65

PRODUCT DETAILS

MARS 70°C SunSlinger totally enclosed condenser fan motors are designed for either vertical shaft-up or shaft-down applications in a variety of ambient conditions. Shell and end shields are enclosed for weather protection. A weep hole is provided in each end shield to allow condensate to drain. All of these motors are suitable for air conditioning or heat pump applications.

FEATURES & BENEFITS

• All angle.
• Rheem mounting holes w/screws installed.
• Trane 4.33 bolt circle mounting holes with self tapping screws.
• Thru bolt or band mounting.
• Water slinger on shaft.
• Capacitor requirement noted on motor label.
• Extra set of nuts on mounting studs.
• Class “B” insulation.
• Single phase, 60 Hertz.
• 70°C/158°F.
• Thermal overload protected.
• Fan duty, continuous, air over.
• Totally enclosed.
• 36 inch leads.
• UL Recognized.

Specification
Ambient Temperature 70 °C
Bearing Type Ball Bearing
Cap Rating 12.5µF/370v
Motor Frame 48
Motor HP 1/2
Motor Type PSC
Mounting Type Thru Bolt/Mounting Holes/Belly Band
Number of Speeds 1
Rotation CW/CCW
RPM 825
Shaft Diameter 1/2"
Shaft Length 7"
Electrical
FLA 2.8
Hertz 60
Voltage 208/230
Safety Standards
California Prop 65 Yes
Weights and Dimensions
Operating Weight (lbs) 15
Exterior Dimensions (D) (inches) 8.0000
Exterior Dimensions (W) (inches) 8.0000
Exterior Dimensions (H) (inches) 12.0000
Shipping Weight (lbs) 15.0000
