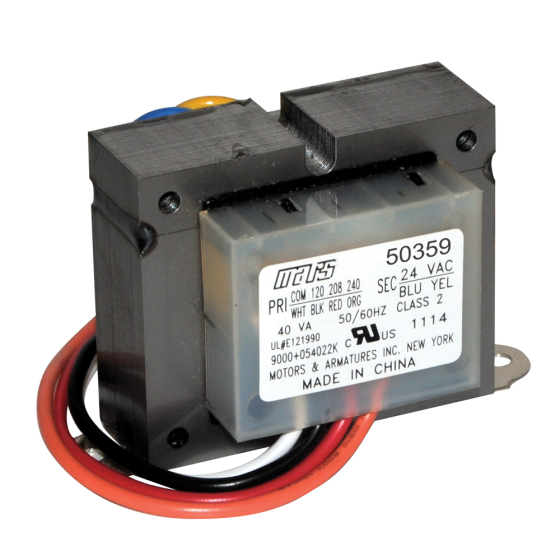

Mars® Transformer 120/208/240Vac Primary, 2.5/12/24Vac Secondary, 40Va

Item

50359

FEATURES

• Provide power source for control circuit for A/C, Heating, or refrigeration systems

• NEMA Class II Construction

• Low heat rise

• Class: Class 2

• Input Voltage: 120/208/240

• Primary Connection: Wire Leads

• Voltage Output: 2.5/12/24

• Mounting: Foot Mount

• Secondary Connection: Wire Leads

• VA Rating: 40

• Hz: 50/60

• Width (in.): 2.36

• Construction: Open Frame w/End Bells

• Circuit Breaker: Fuse

• Standards: UL1585

• Height (in.): 2

Safety Standards
California Prop 65	Yes

Weights and Dimensions
Operating Weight (lbs)	2
Exterior Dimensions (D) (inches)	3.000000
Exterior Dimensions (W) (inches)	3.000000
Exterior Dimensions (H) (inches)	3.000000
Shipping Weight (lbs)	2.000000
